| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-23 21:33:16 |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| ADC Sampling Rate | |
| AEC Qualified | |
| Automotive Grade | |
| Board Type | |
| Contents | |
| Core Processor | |
| Core Speed | |
| Flash Memory | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature Range | |
| RAM Size | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| USB Specification | |
| Utilized IC |

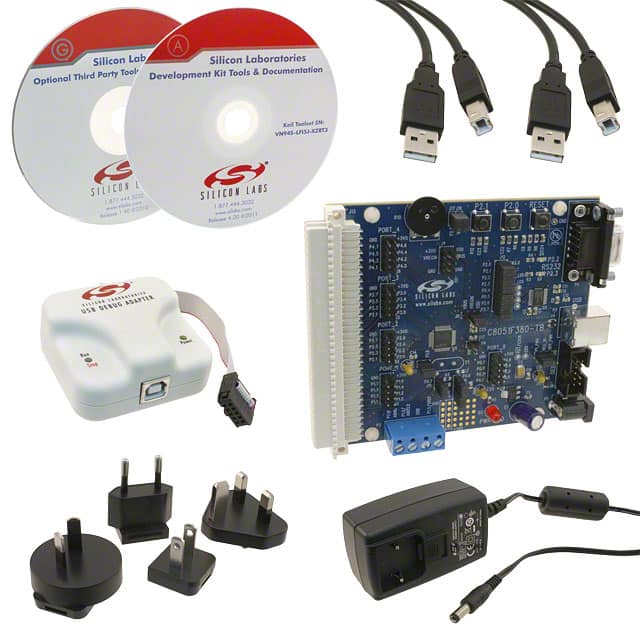

The C8051F380DK is a complete evaluation platform designed for the Silicon Labs C8051F380 8-bit microcontroller. This development kit includes the evaluation board, cables, power supply, and a USB debug adapter programmer, providing everything needed to begin development. The board is built around the C8051F380 device, a high-speed 8051-compatible MCU core that executes up to 70% of instructions in 1 or 2 system clocks, achieving 48 MIPS performance.
The C8051F380 microcontroller integrates 64 kB of in-system programmable Flash memory and 4352 B of RAM. Analog peripherals include a 10-bit ADC with up to 500 ksps sampling rate, two comparators, and an internal voltage reference. The MCU also features a USB 2.0 compliant full-speed (12 Mbps) function controller with integrated clock recovery, eliminating the need for an external crystal in many applications.
Digital I/O includes 40/25 port pins, all 5 V tolerant with high sink current, along with hardware SPI, two I2C/SMBus, and two enhanced UART serial ports. Six general-purpose 16-bit counter/timers and a programmable counter array with five capture/compare modules provide flexible timing capabilities. The operating voltage range of 2.7 to 5.25 V and industrial temperature range of -40 to +85 °C make the C8051F380DK suitable for a wide variety of embedded applications.
The fixed mounting evaluation board is available in multiple IC package options including 48-pin TQFP, 32-pin LQFP, and 32-pin QFN, allowing designers to evaluate the MCU in the package that best matches their target design.
It is used for evaluating the Silicon Labs C8051F380 8-bit MCU, which features an 8051 core running at up to 48 MIPS.
The board utilizes the C8051F380 8-bit MCU with a pipelined 8051 core.
The operating voltage range is 2.7 to 5.25 V.
Yes, the board supports USB 2.0 Full Speed (12 Mbps) operation.
It has 64 kB of Flash memory and 4352 B of RAM.
The operating temperature range is -40 to +85 °C.
The ADC is 10-bit with a maximum sampling rate of 500 ksps.
