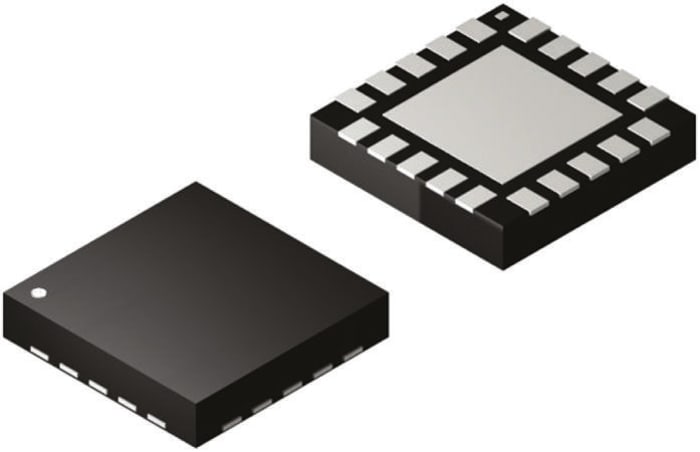

C8051F331-GM The Silicon Labs C8051F331-GM is an 8-bit 8051 microcontroller with 8kB of FLASH memory and a 25MHz clock speed. It comes in a 20-pin QFN package.
Mfr Part #:

C8051F331-GM

Available from 3 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs C8051F331-GM is an 8-bit 8051 microcontroller with 8kB of FLASH memory and a 25MHz clock speed. It comes in a 20-pin QFN package.
✓ Total Stock: 6,446 pcs
$ Price Range: $6.63

C8051F331-GM Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,900 pcs
On Request
4900 pcs On Request 1 On Request On Request 0728+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,321 pcs
On Request
1321 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
225 pcs
On Request
225 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C8051F331-GM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
Operating Temperature
Program Memory Size
Program Memory Type
RAM Size
Voltage
Width
View Similar Products (0)

C8051F331-GM Description

Short technical summary and product information.

The Silicon Labs C8051F331-GM is an 8-bit microcontroller based on the 8051 architecture, operating at a maximum clock frequency of 25MHz. It features 8kB of FLASH program memory and 768 bits of RAM, making it suitable for various embedded applications.



This microcontroller offers a wide operating voltage range from 2V to 5.5V and includes 25 programmable I/O pins. It is equipped with one 10-bit DAC and sixteen 10-bit ADCs, along with one analogue comparator. The device operates within an industrial temperature range of -40°C to 85°C.



The C8051F331-GM is housed in a compact 4mm x 4mm 20-pin QFN surface-mount package. Its design incorporates features like multiple timers and standard communication interfaces, enabling efficient system-on-chip solutions for diverse design needs.

C8051F331-GM Quick Information

Product Type: Microcontroller
Series: C8051F331
Canonical Name: Silicon Labs C8051F331-GM 8-bit 8051 Microcontroller
Subcategory: Embedded

C8051F331-GM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C8051F331-GM Estimated Pricing

Qty Low High
1+ $6.63 $6.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

C8051F331-GM Features

  • 8-bit 8051 microcontroller core.
  • Maximum clock frequency of 25MHz.
  • 8kB FLASH program memory.
  • 20-pin QFN surface-mount package.
  • Wide 2V to 5.5V operating voltage.

C8051F331-GM Applications

  • Embedded control and automation systems.
  • Sensor interface and data acquisition.
  • Industrial control and monitoring.
  • Portable and battery-powered devices.
  • Mixed-signal processing applications.

C8051F331-GM FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the C8051F331-GM?

The operating voltage range is 2V to 5.5V.

What is the operating temperature range of the C8051F331-GM?

The operating temperature range is -40°C to 85°C.

What package type is the C8051F331-GM available in?

The C8051F331-GM is available in a 20-pin QFN package.

How much Flash memory does the C8051F331-GM have?

The C8051F331-GM has 8kB of Flash program memory.

What is the maximum clock frequency of the C8051F331-GM?

The maximum clock frequency is 25MHz.

How many I/O pins does the C8051F331-GM have?

The C8051F331-GM has 25 programmable I/O pins.

Does the C8051F331-GM have an ADC?

Yes, it has 16 ADC channels with 10-bit resolution.
