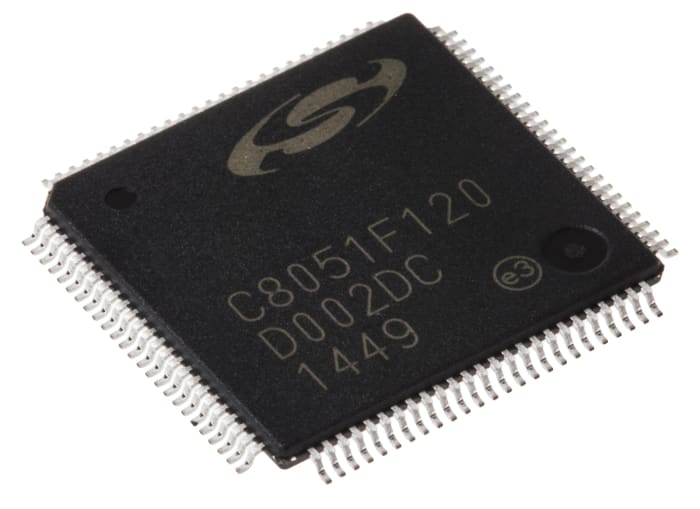

C8051F120 The C8051F120 is an 8-bit microcontroller from Silicon Labs based on the 8051 core. It features 128KB Flash memory, 8.25KB RAM, and operates at up to 100MHz.
Mfr Part #:

C8051F120

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
The C8051F120 is an 8-bit microcontroller from Silicon Labs based on the 8051 core. It features 128KB Flash memory, 8.25KB RAM, and operates at up to 100MHz.
✓ Total Stock: 3,217 pcs

C8051F120 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,217 pcs
On Request
3217 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C8051F120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

C8051F120 Description

Short technical summary and product information.

The C8051F120 is a high-performance 8-bit microcontroller from Silicon Labs, built around the 8051 core with a pipelined architecture that achieves up to 100 MIPS throughput. It integrates 128KB of in-system programmable Flash memory and 8.25KB of internal data RAM. The device includes a rich set of analog peripherals: two 12-bit DACs, a 12-bit SAR ADC (up to 100 ksps) and an 8-bit SAR ADC (up to 500 ksps), along with a temperature sensor and voltage reference. Digital peripherals include SMBus/I2C, SPI, two UARTs, a programmable counter/timer array with 6 capture/compare modules, and 64 I/O lines. The microcontroller operates from 3.0V to 3.6V and over a temperature range of -40°C to +85°C. It is available in a 100-pin TQFP package (14x14mm) for surface mount assembly. Typical applications include industrial control, data acquisition, and embedded systems requiring mixed-signal processing.

C8051F120 Quick Information

Product Type: Microcontroller
Canonical Name: C8051F120 8-bit Microcontroller with 128KB Flash
Subcategory: 8-bit Microcontrollers

C8051F120 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C8051F120 Features

  • Pipelined 8051 core up to 100 MIPS.
  • 128KB in-system programmable Flash memory.
  • Integrated 12-bit ADC and two 12-bit DACs.
  • 64 I/O lines with 5V tolerance.
  • Operating temperature range -40°C to +85°C.

C8051F120 Applications

  • Ideal for industrial control and automation.
  • Suitable for data acquisition systems.
  • Used in embedded mixed-signal processing.
  • Applicable in motor control with PWM.
  • Can be used in sensor interface applications.

C8051F120 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the C8051F120?

3V to 3.6V.

What package does the C8051F120 come in?

100-TQFP (14x14mm).

What is the operating temperature range?

-40°C to +85°C.

Is the C8051F120 RoHS compliant?

RoHS3 Compliant (unverified).

What is the core processor?

8051 8-bit.

What is the maximum speed?

100 MHz.

How much Flash memory does it have?

128KB.
