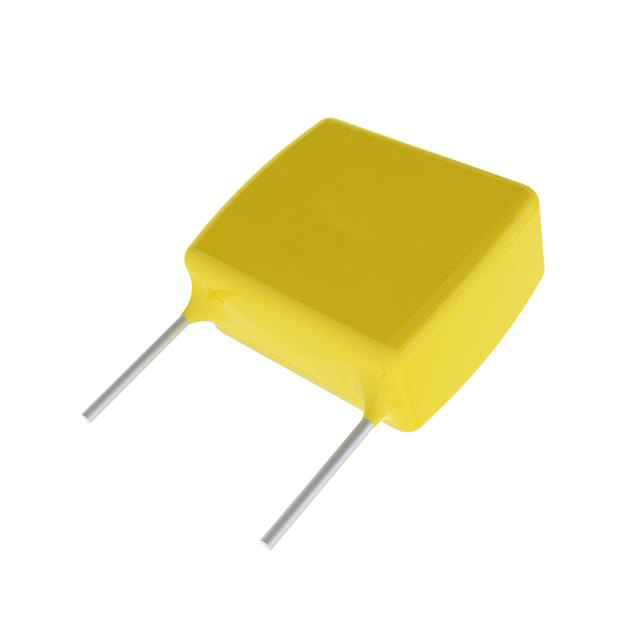

C667C823KHR5TA The Yageo C667C823KHR5TA is a high-voltage radial ceramic capacitor with 0.082 µF capacitance, 3000 VDC rating, and X7R temperature coefficient. It comes in a through-hole package with tin-terminated radial leads.
Mfr Part #:

C667C823KHR5TA

Available from 1 distributors
Mfr Name: Yageo
Yageo
The Yageo C667C823KHR5TA is a high-voltage radial ceramic capacitor with 0.082 µF capacitance, 3000 VDC rating, and X7R temperature coefficient. It comes in a through-hole package with tin-terminated radial leads.
✓ Total Stock: 250 pcs

C667C823KHR5TA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C667C823KHR5TA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Dielectric Withstanding Voltage
Dissipation Factor
Halogen Free
Industrial Grade
Insulation Resistance
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature Range
Temperature Coefficient
Termination
Termination Style
Tolerance
View Similar Products (0)

C667C823KHR5TA Description

Short technical summary and product information.

The Yageo C667C823KHR5TA is a ceramic capacitor from the GoldMax 600 Comm X7R HV series. It offers a nominal capacitance of 0.082 µF measured at 1 kHz and a capacitance tolerance of ±10%. The capacitor is rated for 3000 VDC with a dielectric withstanding voltage of 3600 VDC.



The component uses an X7R dielectric, providing a temperature range of -55°C to +125°C. Its electrical characteristics include a dissipation factor of 2.5% at 1 kHz, an insulation resistance of 12.2 GΩ, and an aging rate of 3% loss per decade hour. The capacitor is RoHS compliant with exemptions and is halogen free.



Mechanically, the part is housed in a radial through-hole package with body dimensions of 19.56 mm maximum length, 18.29 mm maximum height, and 6.89 mm maximum thickness. Lead spacing is 17.14 mm nominal with a lead length of 7 mm minimum and 0.64 mm lead diameter.



This component is suited for commercial high-voltage applications where stable capacitance and through-hole mounting are required. It is supplied in bulk bag packaging with a standard package quantity of 25 pieces.

C667C823KHR5TA Quick Information

Product Type: Ceramic Capacitor
Series: GoldMax 600 Comm X7R HV
Canonical Name: Yageo C667C823KHR5TA 0.082 µF 3000 VDC X7R Radial Ceramic Capacitor
Subcategory: Radial Ceramic Capacitor

C667C823KHR5TA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

C667C823KHR5TA Features

  • 0.082 µF capacitance with ±10% tolerance.
  • Rated for 3000 VDC operation.
  • X7R dielectric from -55°C to +125°C.
  • Radial through-hole package with tin leads.
  • RoHS with exemptions and halogen free.

C667C823KHR5TA Applications

  • Suitable for high-voltage commercial applications.
  • Used in power supply filtering circuits.
  • Ideal for coupling and decoupling circuits.
  • Suitable for through-hole PCB assembly.

C667C823KHR5TA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the C667C823KHR5TA?

0.082 µF measured at 1 kHz 1.0 Vrms.

What is the rated DC voltage of the C667C823KHR5TA?

3000 VDC, with a dielectric withstanding voltage of 3600 VDC.

What temperature coefficient does this capacitor use?

X7R, with operating temperature range -55°C to +125°C.

What is the capacitance tolerance of this part?

±10%.

What is the package type and lead configuration?

Radial through-hole package with 17.14 mm lead spacing, 0.64 mm lead diameter, and tin termination.

What is the insulation resistance?

12.2 GΩ.

What is the dissipation factor?

2.5% maximum at 1 kHz 1.0 Vrms.
