| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Efficiency | |
| Height | |
| Length | |
| Number of Positions | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

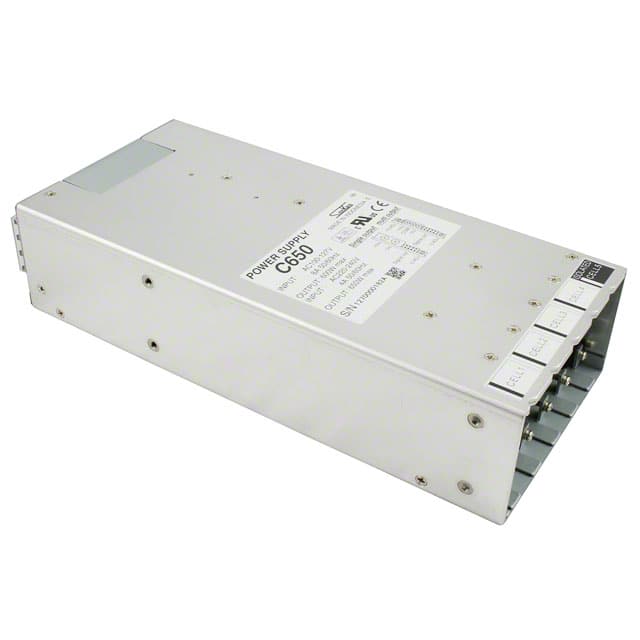

The Sanken C650H is an AC DC configurable power supply chassis designed for versatile power solutions. It delivers a robust 650W of power and operates across a wide input voltage range of 85 to 264 VAC, ensuring compatibility in various electrical environments.
This chassis features a compact mechanical design with dimensions of 279.0mm in length, 127.0mm in width, and a height of 63.5mm (2.5 inches). It is equipped with 5 positions for configuration flexibility.
The C650H boasts high efficiency, rated at 92%, and operates within a temperature range of -20°C to 70°C with derating. It has received approvals from CE and cURus, indicating compliance with international safety standards.
Environmental compliance includes RoHS3 compliance and an MSL of 1, Unlimited. The REACH status is unaffected. This power supply chassis is suitable for applications requiring reliable and configurable power delivery.
The input voltage range is 85 to 264 VAC.
It operates from -20°C to 70°C with derating.
The dimensions are 279.0mm x 127.0mm x 63.5mm (length x width x height).
It is rated for 650W output power.
It has 5 positions for installing power modules.
It carries CE and cURus approvals.
The efficiency is 92%.
