| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,060 pcs
|
1060 pcs | On Request | 1 | On Request | On Request | 2010 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Package / Case | |
| Prop 65 | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology |

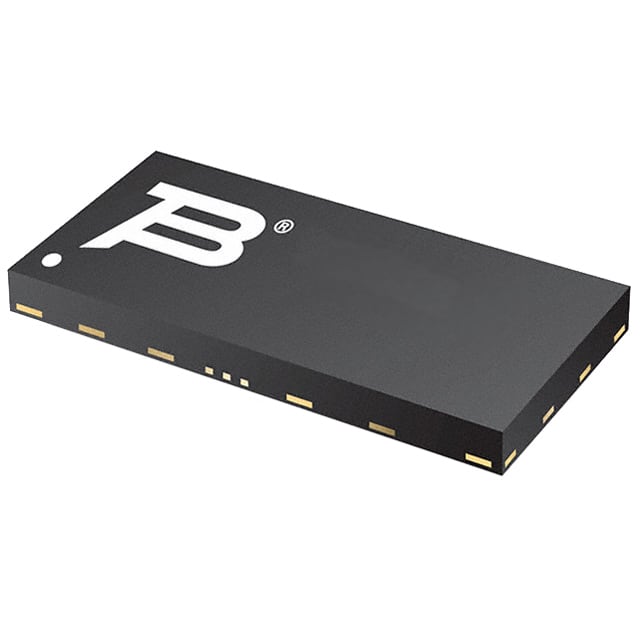

The Bourns C650-180-WH is a high-speed bidirectional protection component from the C650 series, designed using MOSFET semiconductor technology to protect sensitive electronics from faults caused by short circuits, AC power cross, induction, and lightning surges.
Key electrical specifications include a maximum protection voltage of 650 V for impulse faults with rise time ≥1 µs, and a maximum continuous RMS protection voltage of 300 V. The device has a maximum operating current of 180 mA at 25 °C and a typical trigger current of 220 mA. It operates over a temperature range of -40 to +85 °C and can be stored from -65 to +150 °C.
The component is housed in a 3-SMD, no-lead package (supplier device package 3-DFN), suitable for surface mount assembly. It is RoHS3 compliant and Pb-free. This part is not recommended for new designs; Bourns recommends the TBU-CA Series as a preferred alternative.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.39 | $1.39 |
| 10+ | $1.31 | $1.31 |
| 100+ | $1.24 | $1.24 |
| 1,000+ | $1.17 | $1.17 |
| 10,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating current is 180 mA at 25 °C ambient temperature.
It provides a maximum impulse protection voltage of 650 V (rise time ≥1 µs) and a maximum continuous RMS protection voltage of 300 V.
The operating temperature range is -40 to +85 °C.
Yes, it is RoHS3 compliant per Directive 2015/863.
It is available in a 3-SMD, no lead surface mount package (3-DFN).
No, the C650-180-WH is not recommended for new designs (NRND). Bourns recommends the TBU-CA Series instead.
