| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

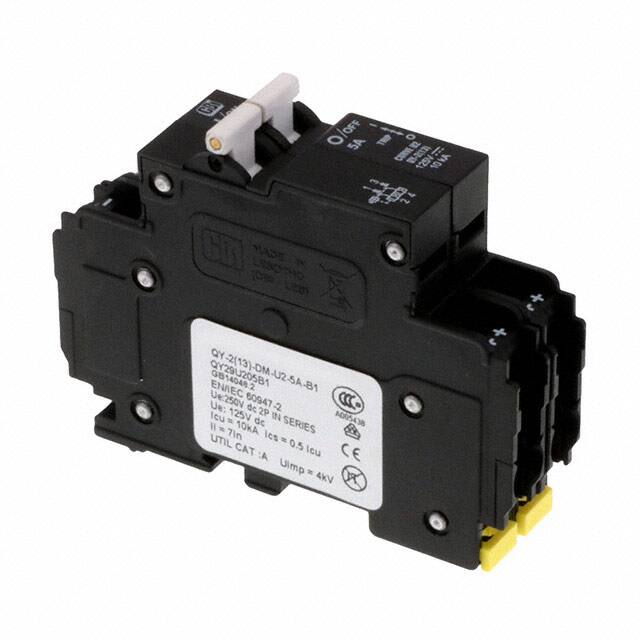

This American Electrical Inc. C5A2P-125VDC is a 2-pole circuit breaker designed for reliable circuit protection. It offers a current rating of 5A and a voltage rating of 125VDC, suitable for various DC applications.
The breaker type is magnetic with a hydraulic delay, providing specific trip characteristics. It is designed for DIN rail mounting, ensuring easy integration into control panels and electrical enclosures. The actuator type is a lever for manual operation.
Compliance is indicated by CE, UL489, and UR approvals. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. REACH status is unaffected.
This component is ideal for applications requiring robust DC circuit protection where a 5A rating and 125VDC voltage are specified. Its magnetic trip mechanism and hydraulic delay offer predictable performance.
The current rating is 5A.
The voltage rating is 125VDC.
It is a magnetic breaker with a hydraulic delay.
It has 2 poles.
It is designed for DIN rail mounting.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
