| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight | |
| Width |

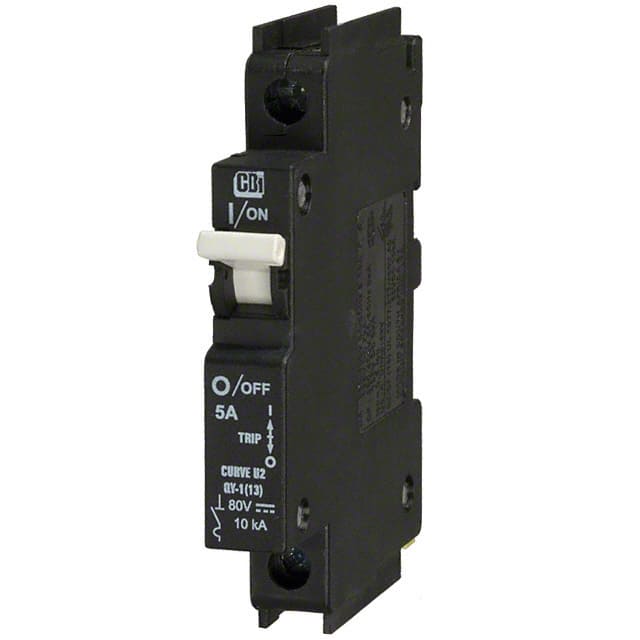

This American Electrical Inc. C5A1P-80VDC is a single-pole circuit breaker designed for DC applications. It features a current rating of 5 Amps and a voltage rating of 80 Volts DC.
The breaker type is magnetic with a hydraulic delay, and it is operated by a lever actuator. It is suitable for DIN rail mounting, making it convenient for panel installations.
Key specifications include a 5A current rating, 80V DC voltage rating, and a U2 curve. The dimensions are 97.2 mm in length, 13 mm in width, and 65 mm in height, with a weight of 102g.
This circuit breaker is certified by CE, UL489, and UR, indicating compliance with relevant safety standards. It is also RoHS3 compliant, MSL 1, and REACH unaffected.
The current rating is 5 Amps.
The voltage rating is 80 V DC.
It has 1 pole.
It is a Magnetic (Hydraulic Delay) breaker type.
The mounting type is DIN Rail.
The dimensions are 97.2 mm in length, 13 mm in width, and 65 mm in height.
