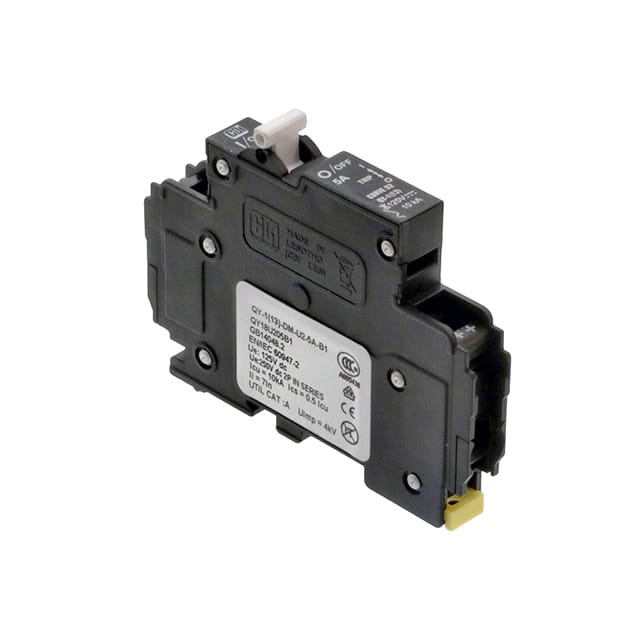

C5A1P-125VDC The American Electrical Inc. C5A1P-125VDC is a 1-pole circuit breaker with a magnetic hydraulic delay mechanism. It is rated for 5A and 125VDC.
Mfr Part #:

C5A1P-125VDC

Mfr Name: American Electrical Inc.
American Electrical Inc.
The American Electrical Inc. C5A1P-125VDC is a 1-pole circuit breaker with a magnetic hydraulic delay mechanism. It is rated for 5A and 125VDC.
Stock on Request

C5A1P-125VDC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

C5A1P-125VDC Description

Short technical summary and product information.

This American Electrical Inc. C5A1P-125VDC is a single-pole circuit breaker designed for reliable circuit protection. It features a magnetic hydraulic delay mechanism, providing a 5A current rating and a 125VDC voltage rating.



The breaker is suitable for DIN rail mounting, making installation straightforward in various electrical enclosures. It has received approvals from CE, UL489, and UR, indicating compliance with relevant safety standards.



Key specifications include a 5A current rating and a 125VDC voltage rating, with a magnetic hydraulic delay type for its tripping characteristic. The actuator type is a lever for easy operation. This component is designed for applications requiring robust overcurrent protection.

C5A1P-125VDC Quick Information

Product Type: Circuit Breaker
Canonical Name: Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

C5A1P-125VDC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C5A1P-125VDC Features

  • 5A current rating for circuit protection.
  • 125VDC voltage rating suitable for DC systems.
  • Magnetic hydraulic delay for controlled tripping.
  • DIN rail mounting for easy installation.
  • Approved by CE, UL489, and UR standards.

C5A1P-125VDC Applications

  • Ideal for DC power distribution.
  • Used in control panel assemblies.
  • Suitable for industrial automation.
  • Provides overcurrent protection.

C5A1P-125VDC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the C5A1P-125VDC circuit breaker?

5A

What is the voltage rating of the C5A1P-125VDC?

125VDC

What type of circuit breaker is the C5A1P-125VDC?

Magnetic (Hydraulic Delay)

How many poles does the C5A1P-125VDC have?

1

What actuator type does the C5A1P-125VDC use?

Lever

What approvals does the C5A1P-125VDC hold?

CE, UL489, UR

What is the mounting method for the C5A1P-125VDC?

DIN Rail
