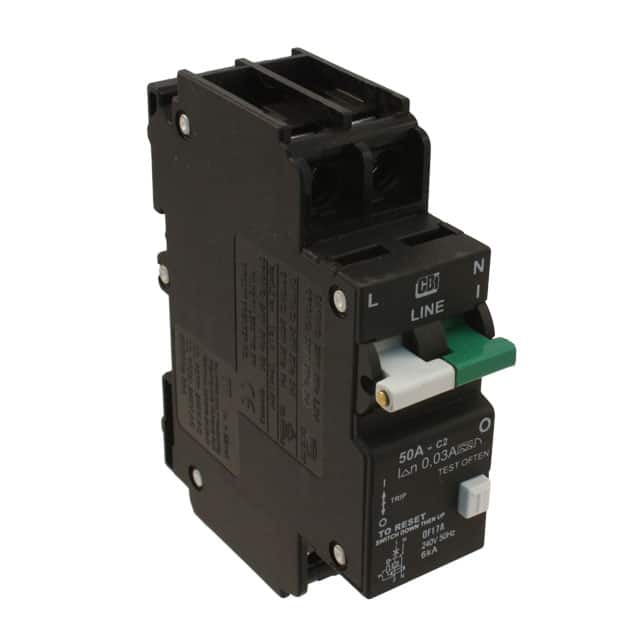

This American Electrical Inc. C50A2P-GFI is a 50 Amp, 240 Volt Ground Fault Interrupter Circuit Breaker. It features DIN rail mounting for easy installation in electrical panels.
The breaker operates on a magnetic/hydraulic principle, ensuring consistent performance unaffected by ambient temperature. It provides protection with a 5 kA interrupting rating and a trip curve of 2. The sensitivity is rated at 30 mA for CE and 22 mA for UL standards.
Designed for safety, GFCI breakers like this one instantly cut power when a ground fault is detected, helping to prevent electric shocks and reduce fire risks. It monitors current imbalance between hot and neutral wires, tripping the circuit if even a small imbalance occurs.
This unit is recognized by CE, UL1077, and UL1053. The operating temperature range is from -40 degrees C to +60 degrees C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 50 Amps.
The voltage rating is 240 Volts.
It is designed for DIN rail mounting.
It is a Ground Fault circuit breaker.
It is approved by CE, UL1053, and UL1077.
The operating temperature range is -40 degrees C to +60 degrees C.
The interrupting rating is 5 kA.
