| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |

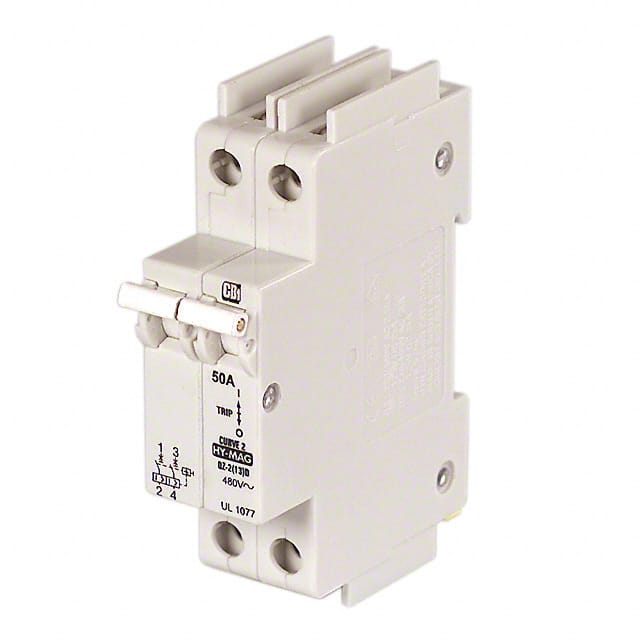

This American Electrical Inc. C50A2P circuit breaker is designed for reliable circuit protection. It features a 2-pole configuration and a 50A current rating, suitable for applications requiring up to 480V.
The breaker utilizes hydraulic-magnetic technology for consistent performance across a wide operating temperature range of -40°C to +60°C. Its compact 13 mm width and DIN rail mounting make it ideal for space-constrained industrial electrical installations.
With a 100% rating capability and an interrupting capacity of 5000A at 120V, 1000A at 277V, and 1000A at 480V, this circuit breaker meets stringent safety and performance standards, including UL1077 approval.
Key technical data includes a dielectric strength of 1960V and an insulation resistance of 100 MOhm, ensuring robust electrical isolation and safety.
The current rating is 50A.
The maximum voltage rating is 480V.
It has 2 poles.
It is designed for DIN rail mounting.
The operating temperature range is -40°C to +60°C.
The interrupting capacity is 5000A at 120V.
The dielectric strength is 1960V at 50/60 Hz.
