| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Angle of Throw | |
| Circuit per Deck | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Depth Behind Panel | |
| Index Stops | |
| Mounting Type | |
| Number of Decks | |
| Number of Poles per Deck | |
| Number of Positions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

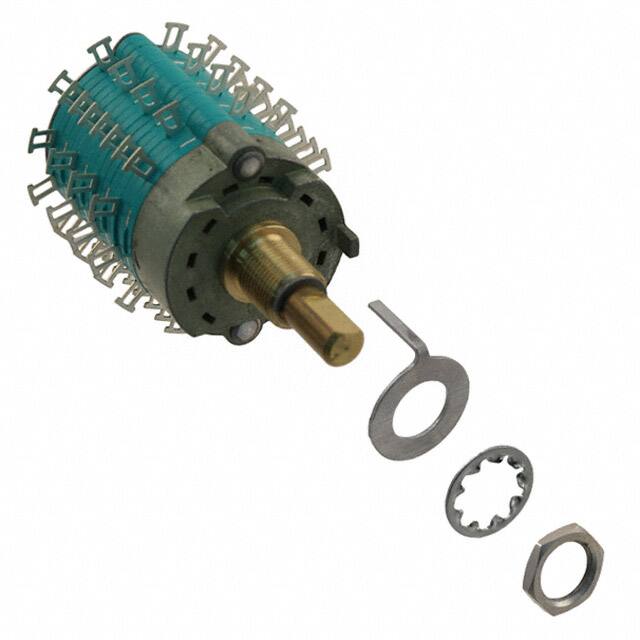

This Electroswitch C4D1204N-A is a rotary switch from the Rotary Switches category. It features a panel mount design with solder lug termination, making it suitable for various applications. The switch provides 2 to 4 selectable positions per deck, with 3 poles and 4 throws (3P4T) circuit configuration per deck across 4 decks.
Key electrical specifications include a voltage rating of 28V and a current rating of 300mA for AC and 500mA for DC. The contact material is brass with a silver contact finish. The actuator type is flatted with a diameter of 6.35mm and a length of 12.70mm. The angle of throw is 30 degrees, and it features non-shorting (BBM) contact timing. The depth behind the panel is 41.76mm, and it includes adjustable index stops.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. These are based on available database information and should be verified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 28V.
It offers 2 to 4 positions.
The current rating is 300mA (AC) and 500mA (DC).
It uses solder lug termination.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
