| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

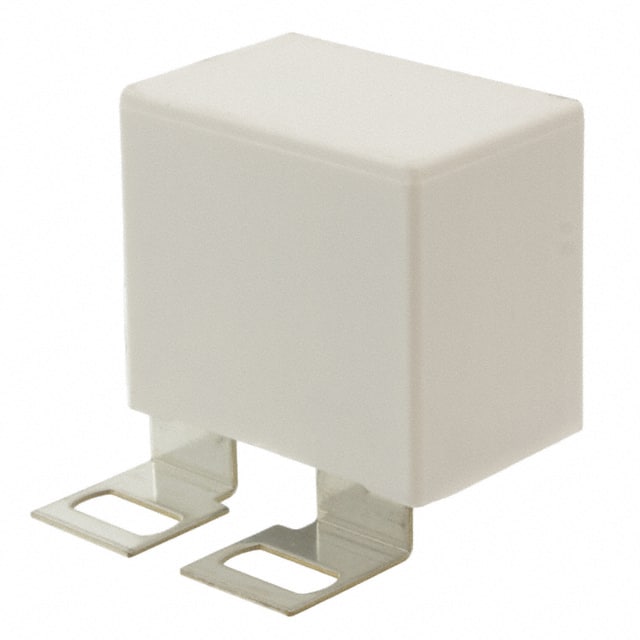

The C4BSPBX4100ZBJJ is a metallized polypropylene film capacitor from Yageo, offering a capacitance of 1 µF with a tolerance of ±5%. It is rated for a DC voltage of 1.2 kV, making it suitable for high-voltage applications. The capacitor features a low equivalent series resistance (ESR) of 3.3 mΩ, which contributes to efficient operation in power circuits.
This capacitor is designed for DC link, DC filtering, and snubber applications. The polypropylene dielectric provides stable performance over a wide temperature range of -40°C to 85°C. The rectangular box package is chassis-mounted with screw terminals, ensuring secure connections in industrial and power electronics systems.
The product dimensions are 42.5 mm in length, 28 mm in width, and 37 mm in height, with a lead spacing of 22 mm. The RoHS3 compliance and MSL 1 rating indicate environmental and moisture sensitivity suitability, though these are unverified. The manufacturer's part number is C4BSPBX4100ZBJJ.
1 µF.
1.2 kV DC.
Polypropylene (PP), metallized.
±5%.
Rectangular box, chassis mount, screw terminals.
3.3 mΩ.
DC link, DC filtering, snubber.
