| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

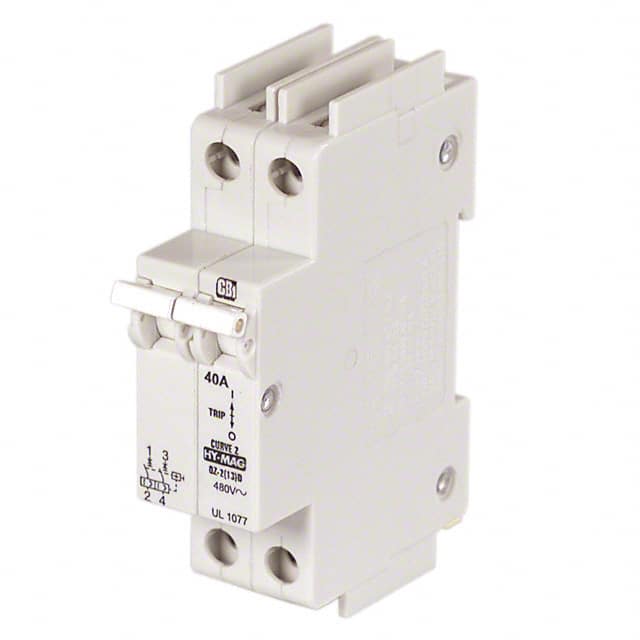

This American Electrical Inc. C40A2P is a 2-pole circuit breaker designed for reliable circuit protection. It utilizes hydraulic-magnetic technology for its tripping mechanism, ensuring consistent performance across a wide operating temperature range of -40°C to +60°C.
With a current rating of 40A and a maximum voltage rating of 480V, this breaker is suitable for various industrial applications. It features a DIN rail mounting type for easy installation in control panels and enclosures. The breaker is approved by CE, UL1077, and UR.
Key technical data includes an interrupting capacity of 10,000A, making it robust for fault current interruption. The actuator type is a lever for manual operation. This component is part of the American Electrical Inc. line of industrial electrical accessories.
480VAC maximum.
40A continuous.
2 poles.
10,000A.
-40°C to +60°C.
DIN Rail.
Magnetic (Hydraulic Delay).
