| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Angle of Throw | |
| Circuit per Deck | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Depth Behind Panel | |
| Index Stops | |
| Mounting Type | |
| Number of Decks | |
| Number of Poles per Deck | |
| Number of Positions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

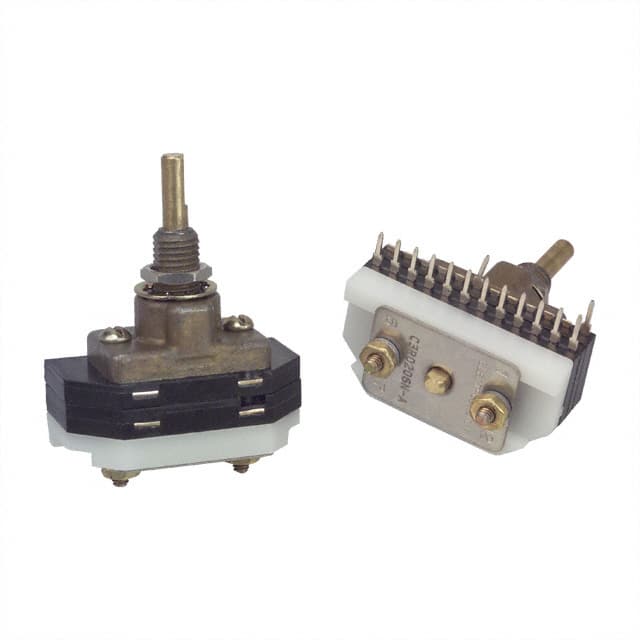

This Electroswitch C3P0206N-A is a rotary switch with a configurable number of positions from 2 to 6. It offers 2 poles per deck with a DP6T circuit configuration and a 30° angle of throw. The switch has a current rating of 100mA AC and 250mA DC, with a voltage rating of 28V.
Designed for panel mounting, this switch features a through-hole, right-angle termination style. The actuator is flatted with a diameter of 3.17mm and a length of 9.52mm. The depth behind the panel is 22.38mm. It has adjustable index stops for precise positioning.
The contact material is brass with a silver contact finish. The switch operates with non-shorting (BBM) contact timing. It has one deck and is suitable for applications requiring reliable rotary switching functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 28 V.
The switch offers 2 to 6 positions.
The current rating is 100mA (AC) and 250mA (DC).
It supports panel mount, through hole, right angle mounting.
