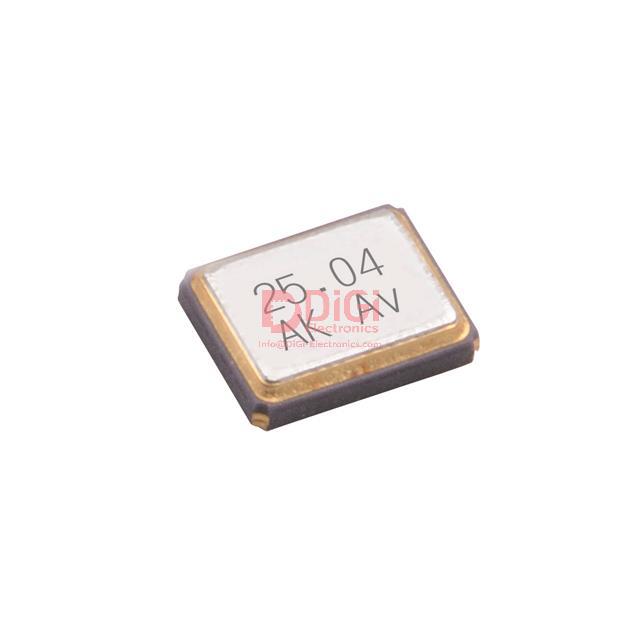

C3E-24.000-12-1050-A-X1-R This Aker Technology Corp crystal oscillator operates at 24 MHz with a frequency tolerance of ±10ppm and a load capacitance of 12pF. It is housed in a 4-SMD, No Lead package.
Mfr Part #:

C3E-24.000-12-1050-A-X1-R

Available from 1 distributors
Mfr Name: Aker Technology Corp
Aker Technology Corp
This Aker Technology Corp crystal oscillator operates at 24 MHz with a frequency tolerance of ±10ppm and a load capacitance of 12pF. It is housed in a 4-SMD, No Lead package.
✓ Total Stock: 50 pcs
$ Price Range: $0.99

C3E-24.000-12-1050-A-X1-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C3E-24.000-12-1050-A-X1-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Frequency Stability
Frequency Tolerance
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Ratings
Tape & Reel
View Similar Products (0)

C3E-24.000-12-1050-A-X1-R Description

Short technical summary and product information.

The Aker Technology Corp C3E-24.000-12-1050-A-X1-R is a crystal oscillator designed for electronic circuits requiring precise frequency control. It operates at a fundamental frequency of 24 MHz with a frequency stability of ±50ppm and a tolerance of ±10ppm.



Key electrical characteristics include a load capacitance of 12pF and an Equivalent Series Resistance (ESR) of 50 Ohms. The component is rated for AEC-Q200 automotive standards, indicating its suitability for demanding applications. It operates within a wide temperature range of -40°C to 125°C.



This crystal oscillator is designed for surface mounting and comes in a compact 4-SMD, No Lead package, measuring approximately 3.20mm x 2.50mm. It is supplied in Tape & Reel packaging, suitable for automated assembly processes.

C3E-24.000-12-1050-A-X1-R Quick Information

Product Type: Crystal Oscillator
Series: C3E
Canonical Name: Aker Technology Corp C3E Series Crystal Oscillator
Subcategory: Crystal Oscillator

C3E-24.000-12-1050-A-X1-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C3E-24.000-12-1050-A-X1-R Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

C3E-24.000-12-1050-A-X1-R Features

  • Operates at a precise 24 MHz frequency.
  • Offers ±10ppm frequency tolerance.
  • Features 12pF load capacitance.
  • AEC-Q200 rated for reliability.
  • Surface mountable in 4-SMD, No Lead package.

C3E-24.000-12-1050-A-X1-R Applications

  • Ideal for clock generation circuits.
  • Suitable for timing reference applications.
  • Used in embedded system designs.
  • Applicable in communication modules.
  • Component in control systems.

C3E-24.000-12-1050-A-X1-R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of this crystal?

24 MHz.

What is the frequency stability?

±50 ppm.

What is the load capacitance?

12 pF.

What is the equivalent series resistance (ESR)?

50 Ohms.

What is the operating temperature range?

-40°C to +125°C.

What is the package type?

4-SMD, no lead surface mount package.

Is this crystal qualified for automotive use?

Yes, it is AEC-Q200 rated.
