| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
117 pcs
|
117 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Height - Seated (Max) | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Package / Case | |
| Size / Dimension | |
| Supply Current | |
| Supply Voltage | |
| Type | |
| Voltage |

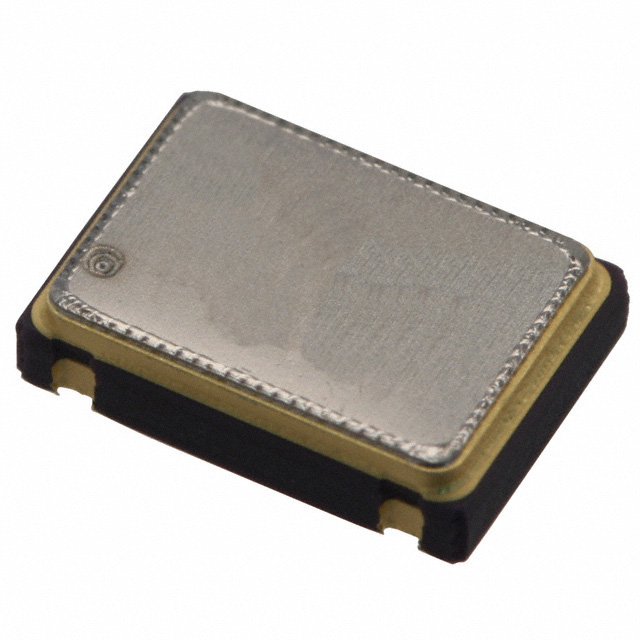

The Crystek C3392-12.000 is a 12 MHz XO (Standard) crystal oscillator featuring HCMOS logic output. It operates from a 3.3V supply voltage with a typical supply current of 18mA. The device offers ±50ppm frequency stability and an operating temperature range of 0°C to 70°C. An Enable/Disable function is available for power management.
This oscillator is designed for surface-mount assembly in a compact 4-SMD, No Lead package measuring 7.20mm x 5.20mm with a seated height of 1.80mm. It is suitable for general-purpose timing applications requiring precise clock generation.
The component is RoHS3 compliant and REACH unaffected, with MSL Level 1 (unlimited) for moisture sensitivity.
3.3V.
4-SMD, No Lead surface mount package.
0°C to 70°C.
Yes, RoHS3 compliant.
12 MHz.
HCMOS.
±50ppm.
