C330C225M5U5TA7301

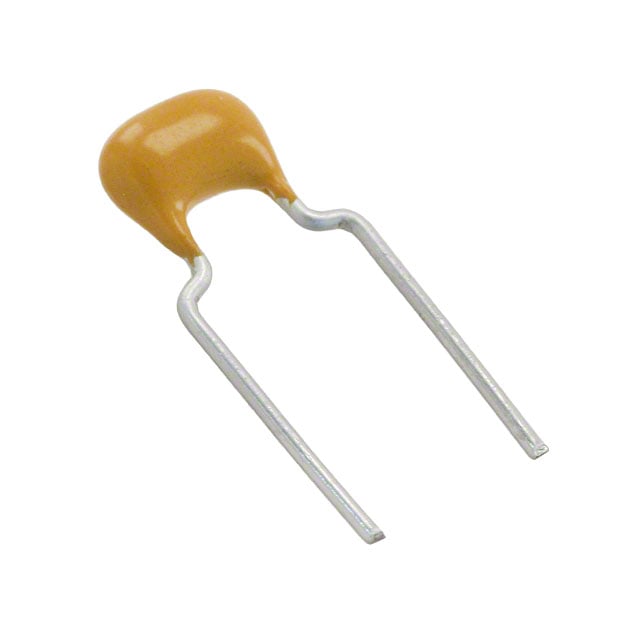

The KEMET C330C225M5U5TA7301 is a GoldMax 300 Comm Z5U series radial ceramic capacitor. It offers a capacitance of 2.2 µF with a tolerance of ±20% and a rated DC voltage of 50 V. The Z5U dielectric provides a temperature coefficient with capacitance change of +22%/-56% over the operating temperature range of +10°C to +85°C.

Key electrical specifications include a maximum dissipation factor of 10% at 1 kHz, insulation resistance of 50 MΩ, and an aging rate of 7% loss per decade hour. The capacitor is designed for through-hole mounting with radial leads and tin-plated terminations.

Mechanical dimensions are: length 7.11 mm max, height 10.16 mm max, thickness 4.07 mm max, lead spacing 5.08 mm ±0.78 mm, lead diameter 0.51 mm +0.1/-0.025 mm, and lead length 16 mm ±0.5 mm. It is supplied in tape and reel packaging with 1500 pieces per reel.

The capacitor is RoHS3 compliant, halogen free, and has an MSL rating of Level 1 (unlimited). It is suitable for commercial applications requiring stable capacitance in general purpose bypass, decoupling, and filtering circuits.
