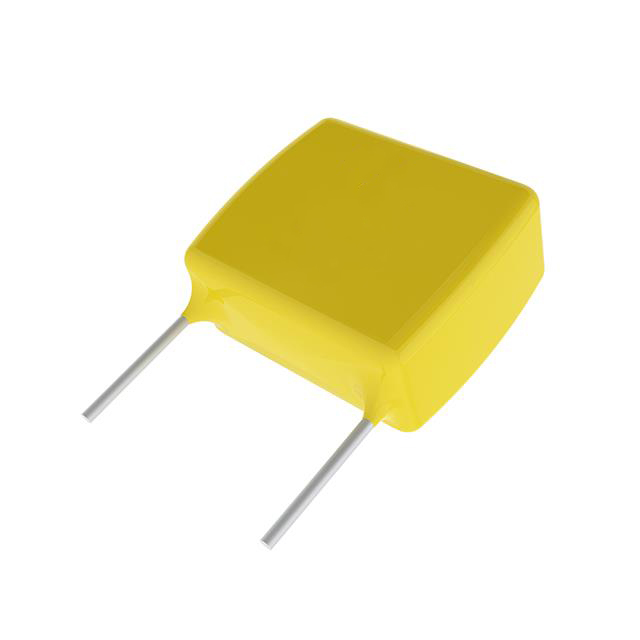

C330C105K1R5TA7303 Yageo C330C105K1R5TA7303 is a 1 µF ±10% 100 VDC X7R ceramic capacitor in a radial leaded package. It is part of the GoldMax 300 Comm X7R series and comes in tape & reel packaging with 1500 units per reel.
Mfr Part #:

C330C105K1R5TA7303

Available from 1 distributors
Mfr Name: Yageo
Yageo
Yageo C330C105K1R5TA7303 is a 1 µF ±10% 100 VDC X7R ceramic capacitor in a radial leaded package. It is part of the GoldMax 300 Comm X7R series and comes in tape & reel packaging with 1500 units per reel.
✓ Total Stock: 758 pcs

C330C105K1R5TA7303 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
758 pcs
On Request
758 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C330C105K1R5TA7303 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Dielectric Withstanding Voltage
Dissipation Factor
Halogen Free
Height
Industrial Grade
Insulation Resistance
Lead Spacing
Lead Style
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature Range
SVHC Present
Tape & Reel
Temperature Coefficient
Termination
Thickness
Tolerance
View Similar Products (0)

C330C105K1R5TA7303 Description

Short technical summary and product information.

The Yageo C330C105K1R5TA7303 is a 1 µF ceramic capacitor with ±10% tolerance, rated for 100 VDC operation. It features an X7R dielectric, providing a capacitance change of ±0.15% over the operating temperature range of -55°C to +125°C. The dissipation factor is 2.5% maximum at 1 kHz and 1.0 Vrms, and the insulation resistance is 100 MΩ minimum. The aging rate is 3% loss per decade hour.



The capacitor is housed in a radial leaded package with maximum dimensions of 7.11 mm length, 9.14 mm height, and 4.07 mm thickness. Lead spacing is 5.08 mm nominal, with a minimum lead length of 18 mm and a lead diameter of 0.51 mm. Termination is tin. The part is supplied in tape and reel packaging on a 305 mm reel, with 1500 units per reel.



This component is suitable for general purpose applications including DC blocking, bypass, filtering, and coupling in power supplies, industrial electronics, and automotive systems. The X7R dielectric offers stable capacitance over a wide temperature range, making it a reliable choice for designs requiring moderate temperature compensation.

C330C105K1R5TA7303 Quick Information

Product Type: Ceramic Capacitor
Series: GoldMax 300 Comm X7R
Canonical Name: Yageo GoldMax 300 Comm X7R 1 µF ±10% 100 VDC Radial Ceramic Capacitor
Subcategory: Radial Leaded Ceramic Capacitor

C330C105K1R5TA7303 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

C330C105K1R5TA7303 Features

  • 1 µF capacitance with ±10% tolerance.
  • Rated for 100 VDC operation.
  • X7R temperature coefficient (-55°C to +125°C).
  • Radial leaded package with 5.08 mm lead spacing.
  • Tape & reel packaging with 1500 units.

C330C105K1R5TA7303 Applications

  • Suitable for DC blocking and bypass circuits.
  • Used in power supply filtering applications.
  • Ideal for coupling and decoupling in industrial electronics.
  • Common in automotive electronic control modules.

C330C105K1R5TA7303 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the C330C105K1R5TA7303?

The capacitance is 1 µF.

What is the voltage rating of this capacitor?

The rated voltage is 100 VDC.

What is the temperature coefficient of the C330C105K1R5TA7303?

The temperature coefficient is X7R, with an operating temperature range of -55°C to +125°C.

What is the tolerance of this capacitor?

The tolerance is ±10%.

What is the packaging type and quantity?

The packaging is tape and reel on a 305 mm reel, with 1500 units per reel.

What is the dissipation factor of the C330C105K1R5TA7303?

The dissipation factor is 2.5% maximum at 1 kHz and 1.0 Vrms.
