| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating | |
| Weight | |
| Width |

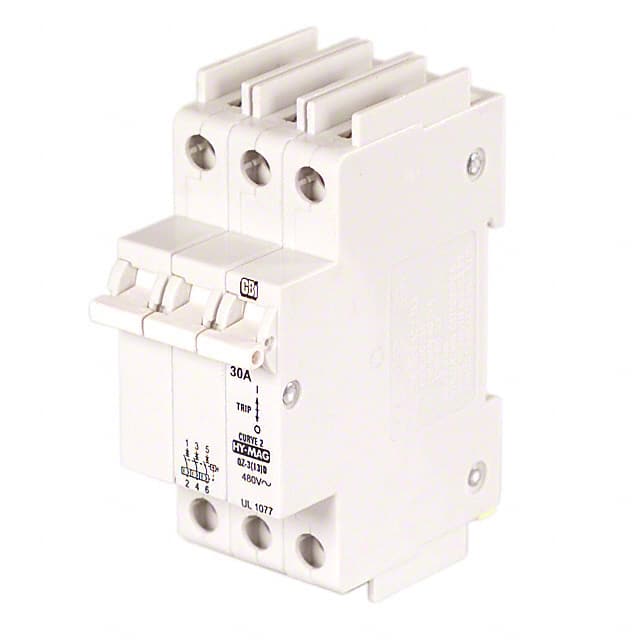

This American Electrical Inc. C30A3P circuit breaker is designed for DIN rail mounting and offers a 3-pole configuration. It utilizes magnetic-hydraulic technology for reliable operation and has a current rating of 30A with a maximum voltage rating of 480V AC.
The breaker is UL 1077 approved, ensuring compliance with safety standards for supplementary protection. Its compact design and DIN rail mounting make it suitable for various industrial and electrical enclosure applications where space is a consideration.
Key specifications include a 30A current rating, 480V AC voltage rating, and a 3-pole configuration. The hydraulic-magnetic trip mechanism provides consistent protection across a wide operating temperature range of -40°C to +60°C.
The C30A3P is rated for 30A continuous current.
The maximum voltage rating is 480VAC.
It is a magnetic-hydraulic (hydraulic delay) circuit breaker.
The C30A3P is a 3-pole circuit breaker.
The operating temperature range is -40°C to +60°C.
The C30A3P is designed for DIN Rail mounting.
It is certified to CE, UL1077, and UR standards.
