| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

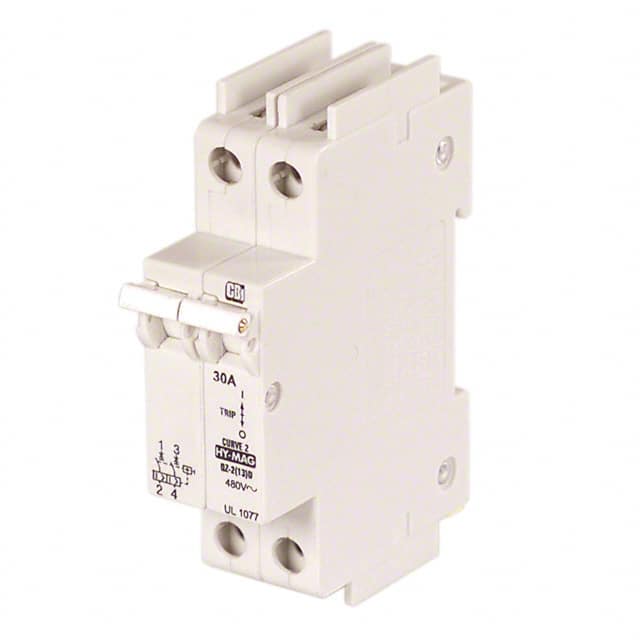

This American Electrical Inc. C30A2P is a 2-pole circuit breaker utilizing magnetic-hydraulic technology. It offers a current rating of 30A and a maximum voltage of 480V AC. The breaker is designed for easy installation on a DIN rail.
Key technical data includes an interrupting capacity of 10,000A, dielectric strength of 1500V, and insulation resistance of 100 Megaohm. The operating temperature range is from -40°C to +60°C. This component is approved by CE, UL1077, and UR.
It is suitable for various industrial electrical applications requiring reliable overcurrent protection. The compact design and DIN rail mounting facilitate integration into control panels and electrical enclosures.
480VAC.
30A.
-40°C to +60°C.
Magnetic (Hydraulic Delay).
10,000 A.
DIN Rail.
CE, UL1077, UR.
