| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight | |
| Width |

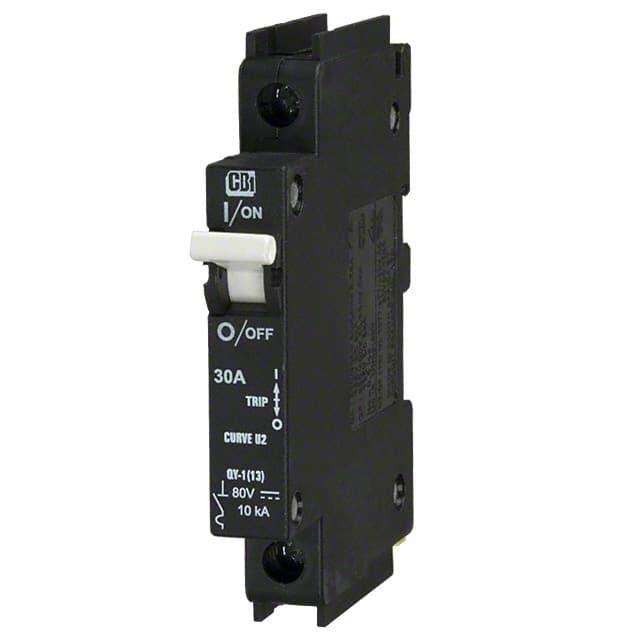

The American Electrical Inc. C30A1P-80VDC is a single-pole circuit breaker designed for DC applications. It offers a current rating of 30 Amperes and a voltage rating of 80 VDC.
This breaker utilizes a magnetic-hydraulic delay mechanism for reliable operation. It is designed for DIN rail mounting, making it suitable for panel installations. The C30A1P-80VDC is certified by UL489A, UL, CE, and UR, ensuring compliance with industry standards.
Key specifications include a width of 13 mm, height of 65 mm, and a weight of 102 g. The actuator type is a lever, and it has a U2 curve rating.
The voltage rating is 80V DC.
30A.
1 pole.
Magnetic hydraulic delay.
DIN rail.
97.2mm length, 13mm width, 65mm height.
CE, UL489, UR.
