| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400,000 pcs
|
400000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Nominal Cold Resistance | |
| Nominal Melting I²t @ 10 In | |
| Nominal Power Dissipation @100% In | |
| Nominal Voltage Drop @100% In | |
| Operating Temperature | |
| Operating Temperature - Maximum | |
| Packaging Type | |
| Response Time | |
| Standard Package Qty | |
| Voltage Rating | |
| Width |

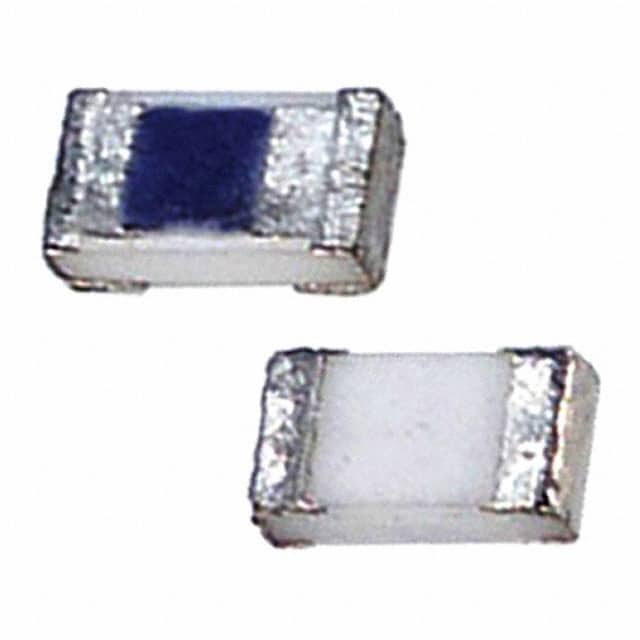

This is a Bel Fuse C2Q 5 board mount fuse, part of the C2Q series. It is a very fast-acting chip fuse rated for 5A at 32VAC/VDC with an interrupting rating of 50A. The fuse is designed for surface mount applications in a compact 0603 (1608 metric) package.
Electrical characteristics include a nominal cold resistance of 0.019 ohms, voltage drop of 0.131V at rated current, melting I²t of 0.055 A²s, and power dissipation of 0.66W. It operates over a temperature range of -55°C to 125°C.
The fuse is RoHS3 compliant, lead-free, halogen-free, and has MSL 1 (unlimited). It is approved by CE and cURus. Typical applications include notebook computers, LCD monitors, power supplies, and industrial equipment.
5 A.
32 VAC/VDC.
50 A at 32 VAC/VDC.
Fast blow (very fast-acting).
0603 (1608 metric) surface mount package.
-55°C to 125°C.
