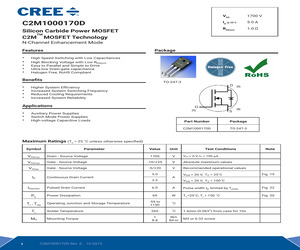

C2M1000170D The Wolfspeed C2M1000170D is an N-channel Silicon Carbide MOSFET designed for high-voltage applications. It features a 1700V drain-source voltage and a continuous drain current of 4.9A.
Mfr Part #:

C2M1000170D

Available from 1 distributors
Mfr Name: CreeLED, Inc.
CreeLED, Inc.
The Wolfspeed C2M1000170D is an N-channel Silicon Carbide MOSFET designed for high-voltage applications. It features a 1700V drain-source voltage and a continuous drain current of 4.9A.
✓ Total Stock: 600 pcs
$ Price Range: $0.99

C2M1000170D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C2M1000170D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Lead Style
Mounting Type
Operating Temperature Range
Power Dissipation
View Similar Products (0)

C2M1000170D Description

Short technical summary and product information.

The Wolfspeed C2M1000170D is a second-generation Silicon Carbide (SiC) MOSFET. This N-channel power MOSFET is rated for a drain-source voltage of 1700V and can handle a continuous drain current of 4.9A at 25°C.



Key electrical characteristics include a maximum Rds On of 1.1 Ohm at 2A and 20V Vgs, a gate threshold voltage of 2.4V maximum at 100µA, and a gate charge of 13nC at 20V Vgs. The device has a maximum gate-source voltage rating of 25V and a power dissipation of 69W.



Packaged in a TO-247-3 through-hole configuration, the C2M1000170D operates within a temperature range of -55°C to 150°C. Its SiC technology offers advantages in high-power switching applications.



This MOSFET is suitable for various industrial automation and power electronics applications where high voltage and efficient switching are required.

C2M1000170D Quick Information

Product Type: MOSFET
Series: Second-Generation C2M1000170D
Canonical Name: Wolfspeed C2M1000170D N-Channel Silicon Carbide MOSFET
Subcategory: SiC MOSFET

C2M1000170D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C2M1000170D Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

C2M1000170D Features

  • 1700V drain-source voltage rating.
  • 4.9A continuous drain current.
  • 1.1 Ohm maximum Rds On.
  • TO-247-3 through-hole package.
  • Wide -55°C to 150°C operating temperature.

C2M1000170D Applications

  • High-voltage power supply designs.
  • Solar inverter and UPS systems.
  • Industrial motor drives and converters.
  • Electric vehicle charging stations.
  • Switch-mode power supplies (SMPS).

C2M1000170D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the C2M1000170D?

1700V.

What package does the C2M1000170D come in?

TO-247-3.

What is the operating temperature range of the C2M1000170D?

-55°C to 150°C.

What is the maximum drain-source on-resistance of the C2M1000170D?

1.1 Ohm at Id = 2A, Vgs = 20V.

What is the typical gate charge of the C2M1000170D?

13nC at Vgs = 20V.

What is the continuous drain current rating of the C2M1000170D?

4.9A at case temperature 25°C.

What is the maximum power dissipation of the C2M1000170D?

69W.
