| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating | |
| Weight | |
| Width |

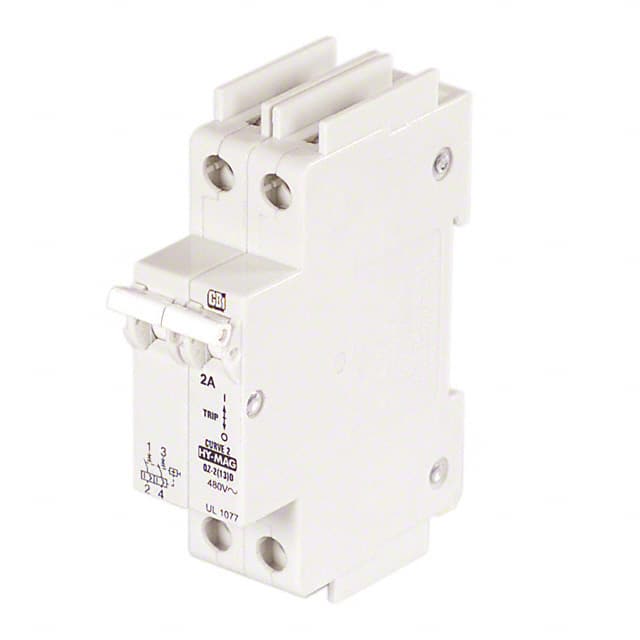

The American Electrical Inc. C2A2P is a 2-pole AC circuit breaker designed for DIN rail mounting. It utilizes magnetic-hydraulic technology for reliable operation and features a compact 13 mm width per pole. This breaker has a current rating of 2A and a maximum operating voltage of 480V.
Key technical specifications include an interrupting capacity of 10,000A, dielectric strength of 1500V, and insulation resistance of 100 Megaohm. The operating temperature range is from -40°C to +60°C. The breaker has a width of 26 mm, height of 65 mm, and length of 97.2 mm, with a weight of 204g.
This circuit breaker is approved by CE, UL1077, and UR. It is suitable for applications requiring overcurrent protection in industrial electrical systems. The lever actuator provides a clear indication of the breaker's status.
The current rating of the C2A2P circuit breaker is 2A.
The C2A2P circuit breaker has 2 poles.
The maximum operating voltage for the C2A2P circuit breaker is 480V.
The C2A2P circuit breaker is designed for DIN rail mounting.
The operating temperature range for the C2A2P circuit breaker is -40°C to +60°C.
The C2A2P circuit breaker is approved by CE, UL1077, and UR.
