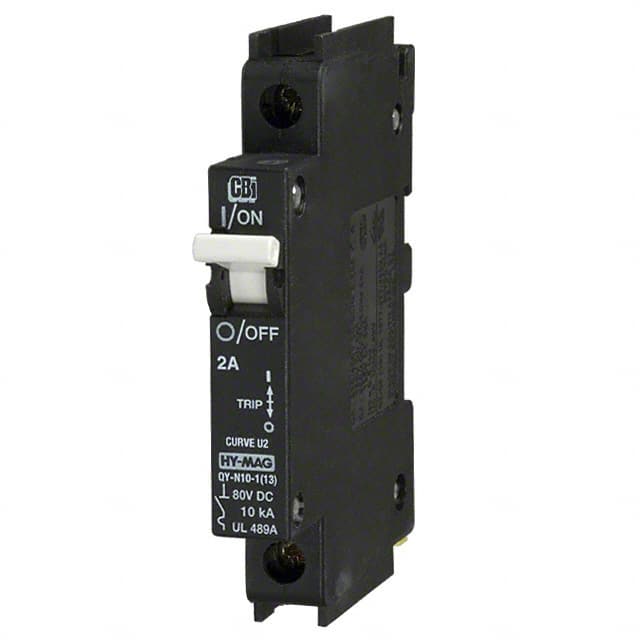

C2A1P-80VDC The American Electrical Inc. C2A1P-80VDC is a single-pole, DC circuit breaker rated for 2A and 80V DC. It features a magnetic hydraulic delay and lever actuator.
Mfr Part #:

C2A1P-80VDC

Mfr Name: American Electrical Inc.
American Electrical Inc.
The American Electrical Inc. C2A1P-80VDC is a single-pole, DC circuit breaker rated for 2A and 80V DC. It features a magnetic hydraulic delay and lever actuator.
Stock on Request

C2A1P-80VDC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

C2A1P-80VDC Description

Short technical summary and product information.

This American Electrical Inc. C2A1P-80VDC is a UL-489A listed DC circuit breaker designed for reliable circuit protection. It offers a current rating of 2 Amperes and a voltage rating of 80 VDC, making it suitable for various DC power applications.



The breaker utilizes a magnetic hydraulic delay mechanism for precise tripping characteristics and features a lever actuator for manual operation. It is designed for DIN rail mounting, facilitating easy integration into control panels and electrical enclosures.



Manufactured by CBI, this circuit breaker has passed rigorous design and manufacturing standards. Its compact design is noted to be nearly 30% thinner than competitors at similar price points, offering space-saving advantages in installations.

C2A1P-80VDC Quick Information

Product Type: Circuit Breaker
Canonical Name: American Electrical Inc. C2A1P-80VDC Magnetic (Hydraulic Delay) Circuit Breaker
Subcategory: DC Circuit Breakers

C2A1P-80VDC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C2A1P-80VDC Features

  • Rated for 2A current and 80V DC.
  • Magnetic hydraulic delay for precise tripping.
  • DIN rail mounting for easy installation.
  • Lever actuator for manual control.
  • UL-489A certified for DC applications.

C2A1P-80VDC Applications

  • Ideal for DC power distribution.
  • Suitable for control panel integration.
  • Used in low voltage DC systems.
  • Provides overcurrent protection.

C2A1P-80VDC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the C2A1P-80VDC circuit breaker?

80 VDC.

What is the current rating?

2 A.

What type of circuit breaker is the C2A1P-80VDC?

Magnetic (Hydraulic Delay).

How many poles does the C2A1P-80VDC have?

1 pole.

What is the mounting type?

DIN Rail.

What type of actuator does it have?

Lever.

What approvals does the C2A1P-80VDC have?

CE, UL489, UR.
