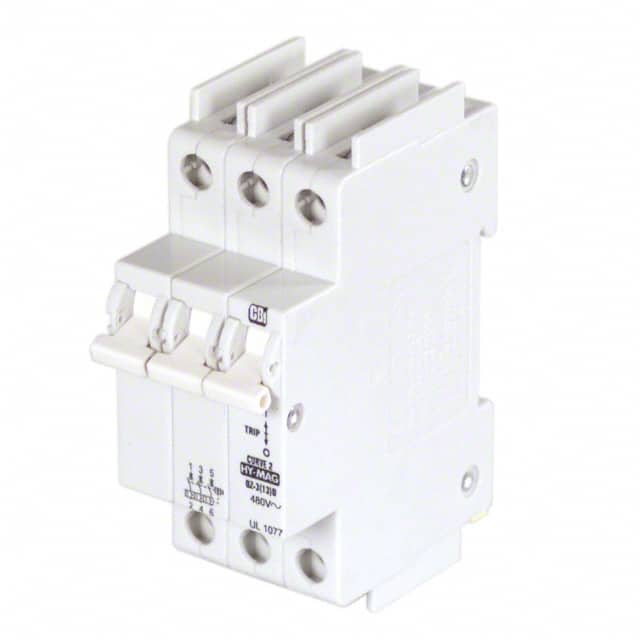

This American Electrical Inc. C25A3P is a 3-pole circuit breaker utilizing hydraulic-magnetic technology for reliable operation. It is designed for DIN rail mounting, offering a compact 13 mm width per pole. The breaker has a current rating of 25A and a maximum voltage rating of 480V.
Key technical specifications include a minimum amp rating of 1A and a maximum amp rating of 50A, with an interrupting capacity of 5000A at 120V, 1000A at 277V, and 1000A at 480V. It operates within a temperature range of -40°C to +60°C and has a dielectric strength of 1960V.
This circuit breaker is approved by CE, UL1077, and UR. It is RoHS3 compliant, has an MSL of 1 Unlimited, and is REACH unaffected. The actuator type is a lever.
480VAC.
25A.
-40°C to +60°C.
5000A at 120V, 1000A at 277V, 1000A at 480V.
3 poles.
DIN Rail.
CE, UL1077, UR.
