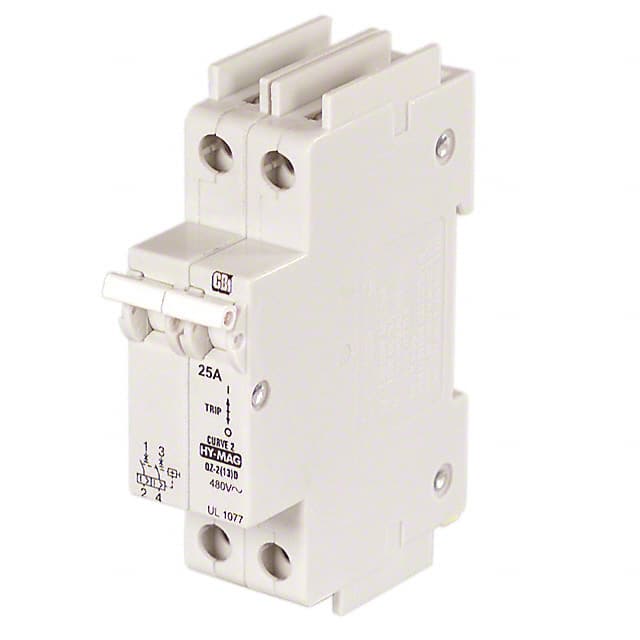

The American Electrical Inc. C25A2P is a 25 Amp, 2-pole circuit breaker featuring magnetic-hydraulic technology. It is designed for DIN rail mounting, offering a compact solution for circuit protection.
This circuit breaker has a voltage rating of 480V and an interrupting capacity of 10,000A. It meets UL1077, CE, and UR approval standards, ensuring compliance for various industrial applications. The operating temperature range is from -40°C to +60°C.
With a sensitivity of 22 mA and a voltage rating of 240V, this breaker is suitable for applications requiring ground fault interruption. Its dimensions are 71 mm in width, 93 mm in height, and it weighs 265g.
Key specifications include a dielectric strength of 1500V and an insulation resistance of 100 Megaohm. The C25A2P is a robust component for demanding electrical systems.
The current rating is 25A.
It has 2 poles.
It is designed for DIN rail mounting.
The voltage rating is 480V.
The operating temperature range is -40°C to +60°C.
The interrupting capacity is 10,000A.
The sensitivity is 22 mA.
