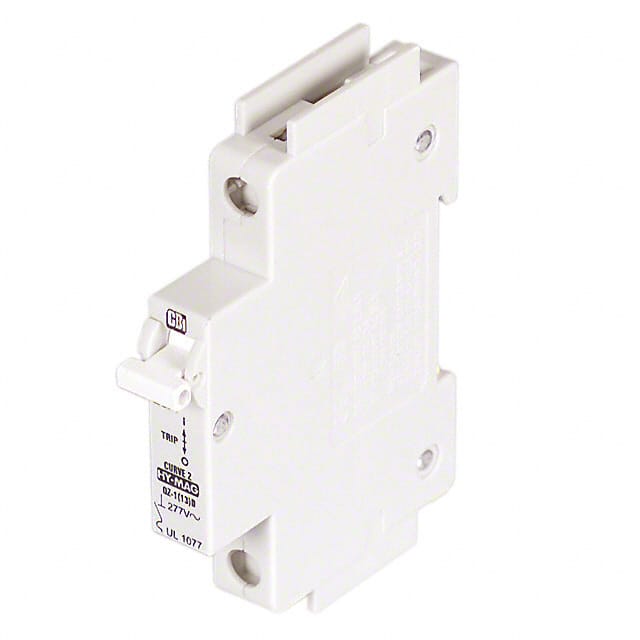

C25A1P The American Electrical Inc. C25A1P is a 1-pole, 25A DIN rail mounted circuit breaker with a 480V rating. It utilizes hydraulic-magnetic technology for reliable operation.
Mfr Part #:

C25A1P

Mfr Name: American Electrical Inc.
American Electrical Inc.
The American Electrical Inc. C25A1P is a 1-pole, 25A DIN rail mounted circuit breaker with a 480V rating. It utilizes hydraulic-magnetic technology for reliable operation.
Stock on Request

C25A1P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Insulation Resistance
Mounting Type
Number of Poles
Operating Temperature Range
Voltage Rating
Width
View Similar Products (0)

C25A1P Description

Short technical summary and product information.

The American Electrical Inc. C25A1P is a single-pole circuit breaker designed for DIN rail mounting. It features a current rating of 25A and a maximum voltage rating of 480V.



This breaker employs hydraulic-magnetic technology, providing a compact 13 mm width and 100% rating capability. It is UL 1077 approved and suitable for various industrial applications.



The operating temperature range for this circuit breaker is -40°C to +60°C, ensuring performance in diverse environmental conditions. Its robust construction and reliable tripping mechanism make it a dependable choice for circuit protection.

C25A1P Quick Information

Product Type: Circuit Breaker
Canonical Name: American Electrical Inc. C25A1P DIN Rail Mounted Circuit Breaker
Subcategory: DIN Rail Mounted Circuit Breaker

C25A1P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C25A1P Features

  • DIN rail mounted circuit breaker.
  • 25 Amp current rating.
  • Single pole configuration.
  • 480 Volt maximum voltage.
  • Hydraulic-magnetic technology.

C25A1P Applications

  • Industrial control panels.
  • Power distribution systems.
  • Machine automation.
  • Electrical safety circuits.

C25A1P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the C25A1P?

-40°C to +60°C.

What is the mounting type of the C25A1P?

DIN Rail.

What type of circuit breaker is the C25A1P?

Magnetic (Hydraulic Delay).

What is the current rating of the C25A1P?

25 A.

What is the maximum voltage rating of the C25A1P?

480 V.

What is the interrupting capacity of the C25A1P?

5000A at 120V, 1000A at 277V, 1000A at 480V.

What is the dielectric strength of the C25A1P?

1960V at 50/60 Hz.
