| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
345 pcs
|
345 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Mounting Type | |
| Operating Temperature Range | |
| Package / Case | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage Rating |

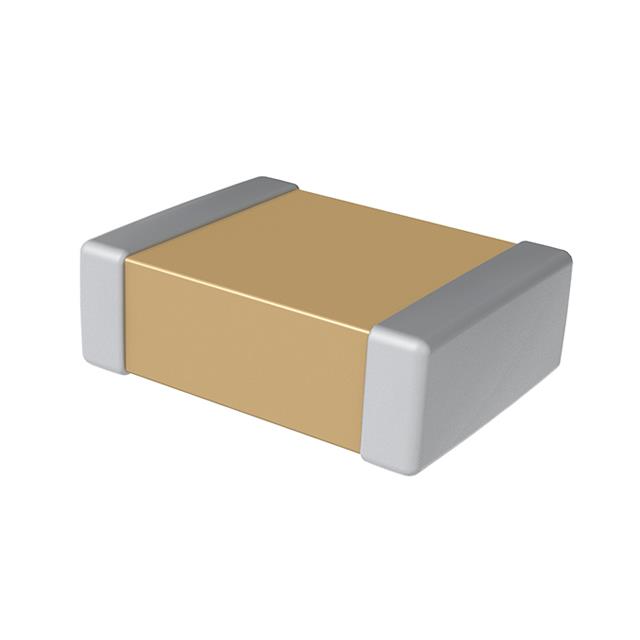

The KEMET C2220X102KHGACAUTO is a surface-mount multilayer ceramic capacitor (MLCC) from the HV FT-CAP series. It features a C0G (NP0) dielectric, which provides a negligible capacitance change with respect to temperature (±30 ppm/°C) and voltage, as well as extremely low ESR and ESL. This capacitor is rated for 1000 pF capacitance with ±10% tolerance and a high DC voltage rating of 3 kV.
The part employs KEMET's Flexible Termination (FT-CAP) technology, which uses a pliable silver epoxy between the base metal and nickel barrier layers to absorb board flexure and prevent flex cracks. It is AEC-Q200 qualified for automotive applications, operating over a temperature range of -55°C to +125°C. The 2220 case size (0.22" x 0.20") is suitable for high-density surface mount assemblies.
Applications include high-frequency power converters, wide bandgap (SiC/GaN) systems, snubber circuits, resonant converters, timing circuits, and filtering. The capacitor is RoHS3 and REACH compliant, and MSL 1 (unlimited floor life).
1000 pF (decoded from part number '102').
3 kV DC (voltage code 'H' corresponds to 3 kV per KEMET coding).
±10% (code 'K').
±30 ppm/°C over -55°C to +125°C.
-55°C to +125°C.
2220 (0.22" x 0.20") surface mount case.
Yes, it is AEC-Q200 qualified.
