| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating | |
| Weight | |
| Width |

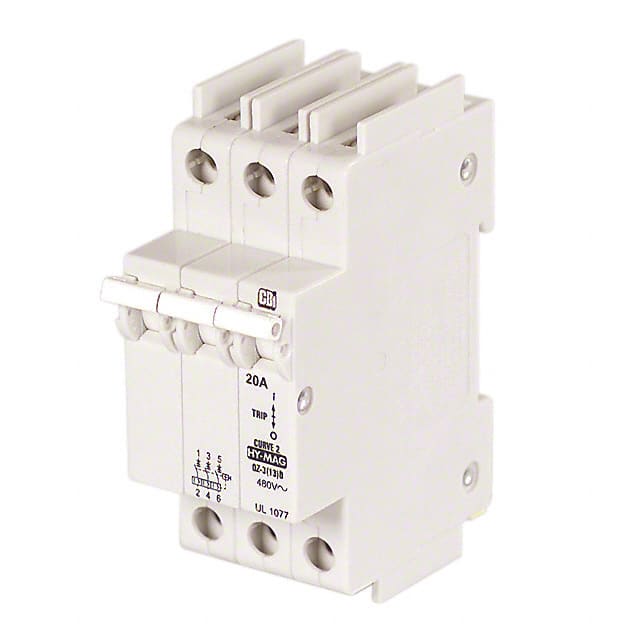

This American Electrical Inc. C20A3P circuit breaker is designed for DIN rail mounting and offers a 3-pole configuration. It has a current rating of 20A and a maximum operating voltage of 480VAC. The breaker utilizes hydraulic-magnetic technology, providing a 10,000A interrupting capacity.
With a compact 39 mm width, 65 mm height, and 97.2 mm length, this circuit breaker is suitable for various industrial applications. It operates within a temperature range of -40°C to +60°C. The C20A3P is UL1077 and CE approved, ensuring compliance with relevant safety standards.
Key specifications include a 20A current rating, 480V maximum voltage, and 3 poles. The hydraulic-magnetic trip mechanism ensures consistent performance. Its DIN rail mounting type simplifies installation in control panels and electrical enclosures.
480VAC.
20A.
3 poles.
10,000A.
DIN Rail.
-40°C to +60°C.
CE, UL1077, UR.
