| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Sensitivity | |
| Voltage Rating | |
| Weight | |
| Width |

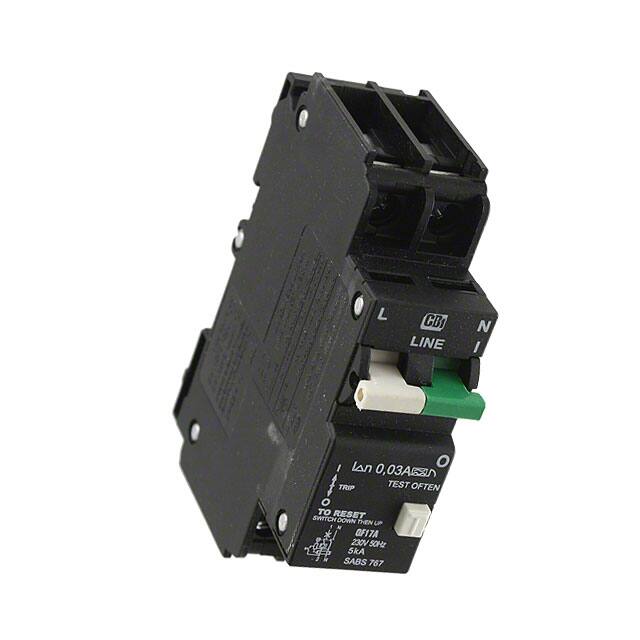

This Ground Fault Interrupter (GFI) Circuit Breaker from American Electrical Inc. provides essential protection against electric shocks and fire risks by instantly cutting power when a ground fault is detected. It operates by monitoring current flow between hot and neutral wires, tripping the circuit if even a small imbalance occurs.
Key specifications include a 20 Amp current rating and a 240 Volt voltage rating, with a single pole configuration. The breaker features a magnetic/hydraulic operation, ensuring consistent performance unaffected by ambient temperature. It is designed for DIN rail mounting, making installation straightforward in control panels and enclosures.
This GFI circuit breaker is CE Approved and UL 1077 and UL 1053 recognized, meeting important safety and performance standards. It has a sensitivity of 30mA for CE and 22mA for UL applications, and an interrupting rating of 5 kA. The operating temperature range is -40°C to +60°C.
With its robust construction and reliable fault detection, this circuit breaker is suitable for various industrial and commercial electrical applications requiring enhanced safety measures.
The current rating is 20 Amps.
The voltage rating is 240 Volts.
It is designed for DIN rail mounting.
It is a Ground Fault circuit breaker.
It is CE, UL1053, and UL1077 recognized.
The operating temperature range is -40 to +60 degrees C.
The sensitivity is 30 mA for CE and 22 mA for UL.
