| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Sensitivity | |
| Voltage Rating | |
| Weight | |
| Width |

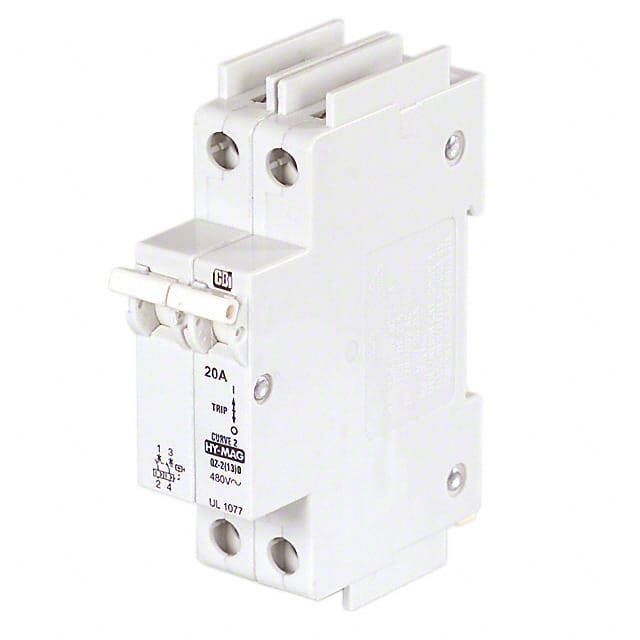

The American Electrical Inc. C20A2P is a 20 Amp, 2-pole circuit breaker featuring hydraulic-magnetic technology. It is designed for DIN rail mounting, offering a compact solution for circuit protection.
This breaker has a maximum operating voltage of 480V and is UL1077 recognized, along with CE certification. Its interrupting capacity is rated at 10,000A. The operating temperature range is from -40°C to +60°C.
Key specifications include a 20A current rating and a 2-pole configuration. The breaker type is magnetic with a hydraulic delay, and it features a lever actuator. The dimensions are 71mm width, 93mm height, and 61.4mm length, with a weight of 265g.
This component is suitable for applications requiring reliable overcurrent protection in industrial and commercial settings where DIN rail mounting is standard.
The current rating is 20 Amps.
It has 2 poles.
The maximum operating voltage is 480 Volts.
It is designed for DIN rail mounting.
The operating temperature range is -40°C to +60°C.
The interrupting capacity is 10,000 Amps.
The sensitivity is 22 mA.
