| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agencies | |
| Approval Agency | |
| Blow Time (Minimum @ 100% of rated current) | |
| Blow Time (Minimum/Maximum @ 200% of rated current) | |
| Blow Time (Minimum/Maximum @ 300% of rated current) | |
| Blow Time (Minimum/Maximum @ 800% of rated current) | |
| Body Material | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| DC Resistance (Cold) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power Dissipation | |
| Response Time | |
| Termination Material | |
| Termination Style | |
| Voltage Drop | |
| Voltage Rating | |
| Width |

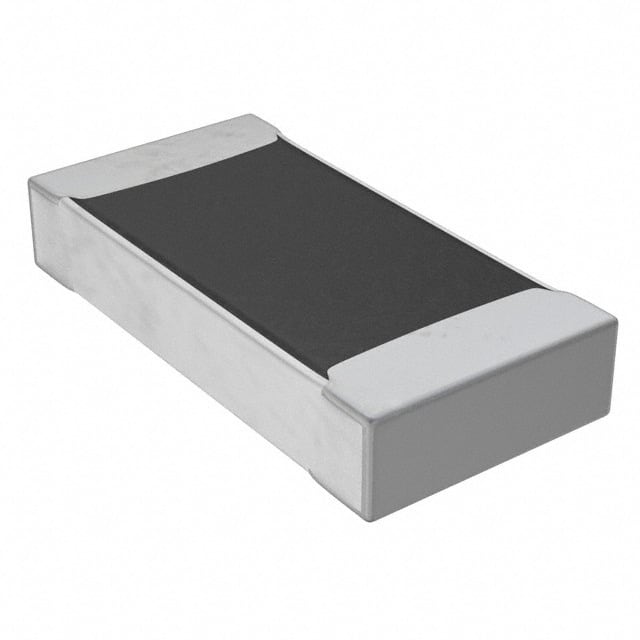

The Bel Fuse C1S 1 is a 1A rated, slow blow surface mount chip fuse designed for overcurrent protection in a compact 1206 (3216 Metric) package. It is rated for 63VAC and 63VDC operation with a breaking capacity of 50A at 63V.
This fuse features a ceramic body with silver/nickel/tin terminations and is compatible with lead-free soldering processes. It offers a wide operating temperature range from -55°C to 125°C and is qualified to MSL 1 (unlimited). The C1S 1 is RoHS 3 compliant, REACH unaffected, halogen free, and lead free.
Typical applications include notebook computers, LCD monitors, power supplies, DC-DC converters, and industrial equipment. The fuse is supplied in tape and reel packaging for automated SMD placement.
The current rating is 1 A.
The voltage rating is 63 VAC and 63 VDC.
The breaking capacity is 50 A at 63 V.
The response time is slow blow.
The package is 1206 (3216 Metric).
The operating temperature range is -55°C to 125°C.
The fuse is approved by CE and cURus.
