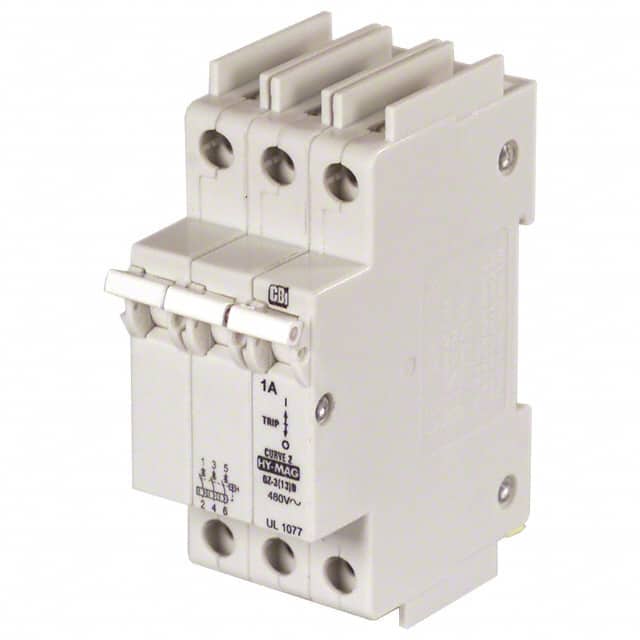

C1A3P The American Electrical Inc. C1A3P is a 3-pole circuit breaker with a 1A current rating and 480V AC voltage rating. It features a magnetic-hydraulic delay mechanism.
Mfr Part #:

C1A3P

Mfr Name: American Electrical Inc.
American Electrical Inc.
The American Electrical Inc. C1A3P is a 3-pole circuit breaker with a 1A current rating and 480V AC voltage rating. It features a magnetic-hydraulic delay mechanism.
Stock on Request

C1A3P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Tape & Reel
Voltage Rating
View Similar Products (0)

C1A3P Description

Short technical summary and product information.

The American Electrical Inc. C1A3P is a DIN rail mountable circuit breaker designed for electrical protection applications. This model features a 3-pole configuration, a current rating of 1 Amp, and a maximum voltage rating of 480V AC.



Utilizing a magnetic-hydraulic delay technology, the C1A3P offers reliable circuit interruption. It is approved by CE, UL1077, and UR agencies, indicating compliance with relevant safety standards. The breaker is designed for DIN rail mounting, facilitating easy installation in control panels and electrical enclosures.



Key specifications include a maximum interrupting capacity of 1000A at 480V and an operating temperature range of -40°C to +60°C. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1.

C1A3P Quick Information

Product Type: Circuit Breaker
Canonical Name: American Electrical Inc. C1A3P Magnetic Hydraulic Circuit Breaker
Subcategory: Circuit Breaker

C1A3P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C1A3P Features

  • 3-pole circuit breaker configuration.
  • 1 Amp current rating.
  • 480V AC maximum voltage rating.
  • Magnetic-hydraulic delay technology.
  • DIN rail mounting type.

C1A3P Applications

  • Provides overcurrent protection.
  • Suitable for industrial control panels.
  • Used in electrical distribution systems.
  • Facilitates panel assembly efficiency.

C1A3P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the C1A3P circuit breaker?

480VAC at 50/60 Hz.

What is the current rating?

1A.

How many poles does it have?

3 poles.

What type of circuit breaker is it?

Magnetic (Hydraulic Delay).

What is the interrupting capacity?

1000A at 480V.

What is the operating temperature range?

-40°C to +60°C.

What mounting type does it support?

DIN Rail.
