| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating | |
| Width |

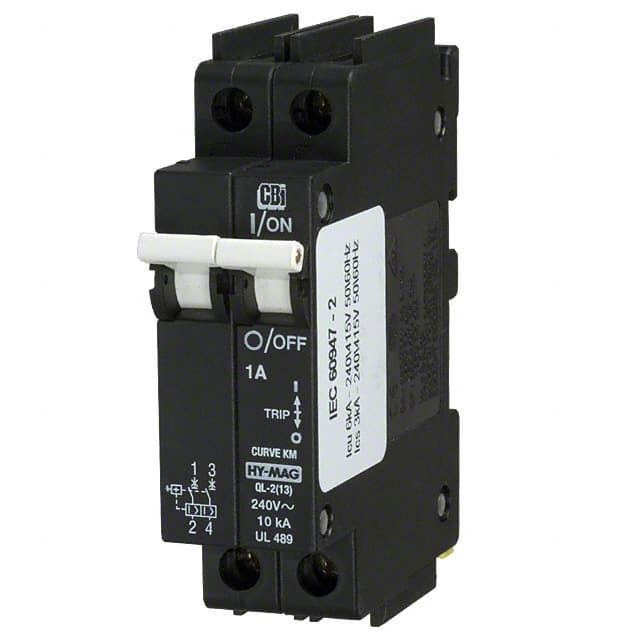

The American Electrical Inc. C1A2P-489 is a 2-pole AC circuit breaker designed for DIN rail mounting. It offers a current rating of 1 Amp and a maximum voltage rating of 240VAC. This breaker utilizes hydraulic-magnetic technology for reliable operation.
With a compact 26 mm width, it is suitable for space-constrained applications. The circuit breaker has an interrupting capacity of 10,000A at 120V and a dielectric strength of 1500V. It operates within a temperature range of -40°C to +60°C.
This UL489 listed component is designed for industrial electrical applications, providing overcurrent protection. Its robust construction and adherence to rigorous design standards ensure dependable performance in various environments.
The C1A2P-489 has a current rating of 1A.
The maximum voltage rating is 240V.
It is a magnetic hydraulic delay circuit breaker.
The C1A2P-489 has 2 poles.
The interrupting capacity is 10,000A.
The operating temperature range is -40°C to +60°C.
The mounting type is DIN Rail.
