| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| SVHC Present | |
| Voltage Rating |

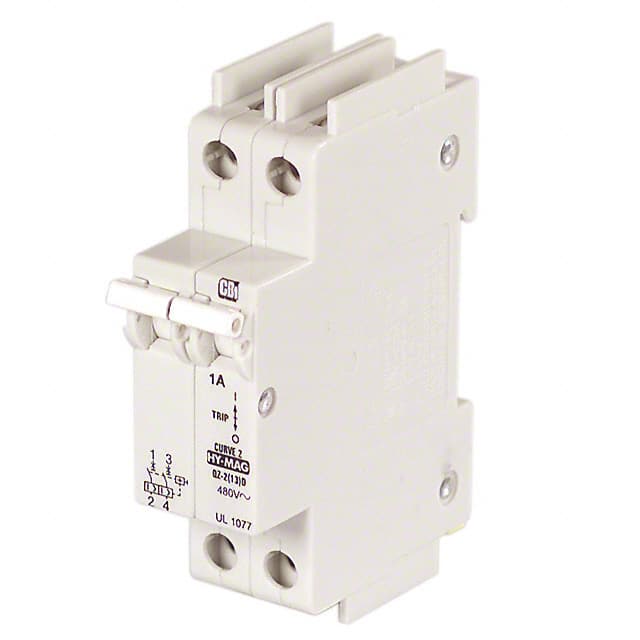

This American Electrical Inc. C1A2P circuit breaker is designed for DIN rail mounting and offers a 2-pole configuration. It utilizes magnetic-hydraulic technology for its tripping mechanism, providing a reliable and consistent performance. The breaker is rated for a maximum operating voltage of 480VAC and a current rating of 1A. It also features a compact 13mm width and is UL 1077 approved.
Key technical specifications include an interrupting capacity of 10,000A, a dielectric strength of 1500V, and an insulation resistance of 100 Megaohm. The operating temperature range is from -40°C to +60°C, making it suitable for a variety of industrial environments. The actuator type is a lever for easy operation.
This circuit breaker is suitable for applications requiring overcurrent and short-circuit protection in industrial electrical systems. Its DIN rail mounting ensures easy integration into control panels and distribution boards.
The C1A2P circuit breaker has a current rating of 1 Amp.
The maximum voltage rating for the C1A2P circuit breaker is 480VAC.
The C1A2P circuit breaker has 2 poles.
The C1A2P circuit breaker is designed for DIN rail mounting.
The operating temperature range for the C1A2P circuit breaker is -40°C to +60°C.
