| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| SVHC Present | |
| Voltage Rating | |
| Width |

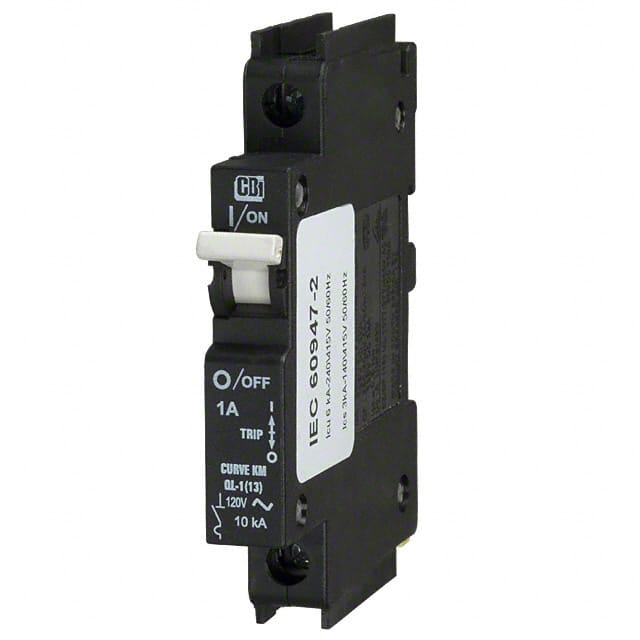

This American Electrical Inc. C1A1P-489 circuit breaker is designed for DIN rail mounting and offers a compact 13 mm width. It features a 1A current rating and a 240V voltage rating, suitable for various electrical protection applications.
The breaker employs hydraulic-magnetic technology, providing a reliable magnetic (hydraulic delay) tripping mechanism. It is approved by CE, UL489, and UR standards, ensuring compliance with safety regulations. The operating temperature range is from -40°C to +60°C, making it suitable for a wide range of environmental conditions.
With an interrupting capacity of 10,000A at 120/240V, this single-pole breaker offers robust protection. Its insulation resistance is rated at 100 Megaohms, and it has a dielectric strength of 1500V.
Key specifications include a minimum amp rating of 1A and a maximum amp rating of 25A, with this specific model rated at 1A. The actuator type is a lever for easy operation.
The current rating is 1A.
The voltage rating is 240V.
It is mounted on a DIN rail.
It uses hydraulic-magnetic technology.
It is approved by CE, UL489, and UR.
The operating temperature range is -40°C to +60°C.
The interrupting capacity is 10,000A.
