Mfr Part #:

C1812C334KCRAC7210

Mfr Name: Yageo

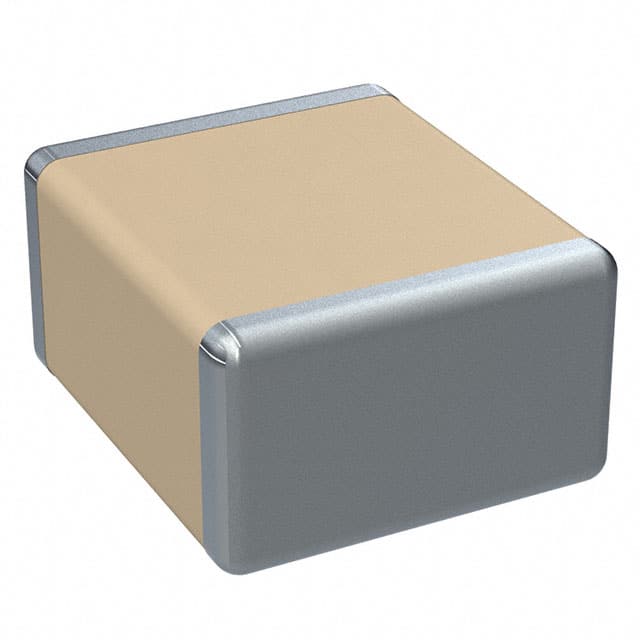

KEMET C1812C334KCRAC7210 is a 0.33 µF ±10% 500 VDC X7R MLCC in a 1812 surface mount package with low ESL and high voltage capability.

✓ Total Stock: 33,560 pcs

$ Price Range: $0.41

C1812C334KCRAC7210 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	33,560 pcs On Request	33560 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

C1812C334KCRAC7210 Description

Short technical summary and product information.

The KEMET C1812C334KCRAC7210 is a surface-mount multilayer ceramic capacitor (MLCC) from the SMD Comm X7R HV series. It offers a capacitance of 0.33 µF with ±10% tolerance and a rated DC voltage of 500 V. The dielectric is X7R, providing a capacitance change of no more than 15% over the temperature range of -55°C to +125°C.

Key electrical characteristics include a dissipation factor of 2.5% maximum at 1 kHz, insulation resistance of 303 MOhms minimum, and an aging rate of 3% per decade hour. The component is designed for general purpose applications where high voltage and temperature stability are required.

The capacitor is housed in an 1812 (4532 metric) case with a maximum thickness of 2.30 mm. Termination is tin, and the part is rated MSL 1 (unlimited floor life). It is supplied in tape and reel packaging (330 mm plastic tape) with a standard quantity of 2000 pieces per reel.

C1812C334KCRAC7210 Quick Information

Product Type: MLCC Capacitor

Canonical Name: SMD Comm X7R HV Ceramic Capacitor, 0.33 µF, 500 VDC, 1812

Subcategory: MLCC High Voltage

C1812C334KCRAC7210 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

C1812C334KCRAC7210 Estimated Pricing

Qty	Low	High
2,000+	$0.41	$0.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

C1812C334KCRAC7210 Features

0.33 µF capacitance with ±10% tolerance.
Rated for 500 VDC operation.
X7R temperature stable dielectric.
Low ESL and high voltage design.
Surface mount 1812 package.

C1812C334KCRAC7210 Applications

Used in high voltage DC-DC converters.
Suitable for snubber and filter circuits.
Ideal for general purpose decoupling.
Common in power supply designs.

C1812C334KCRAC7210 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the capacitance of the C1812C334KCRAC7210?

The capacitance is 0.33 µF measured at 1 kHz 1.0Vrms.

What is the voltage rating of this capacitor?

The rated DC voltage is 500 V, with a dielectric withstanding voltage of 750 VDC.

What is the temperature coefficient of the C1812C334KCRAC7210?

The temperature coefficient is X7R, with a maximum capacitance change of 15% over the operating range of -55°C to +125°C.

What is the tolerance of this capacitor?

The tolerance is ±10%.

What package size is the C1812C334KCRAC7210?

The package is 1812 (4532 metric) with dimensions of 4.5 mm length, 3.2 mm width, and maximum thickness of 2.3 mm.

What is the dissipation factor of this capacitor?

The dissipation factor is 2.5% maximum at 1 kHz 1.0Vrms.

Is the C1812C334KCRAC7210 RoHS compliant?

Yes, it is listed as RoHS3 compliant and REACH unaffected.

Category	Ceramic Capacitors
Manufacturer Name	Yageo
Aging Rate	3% Loss/Decade Hour
Applications	General Purpose
Capacitance	0.33 µF
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)	15%
Dielectric Withstanding Voltage	750 VDC
Dissipation Factor	2.5%
Features	Low ESL, High Voltage
Insulation Resistance	303 MOhms
Length	4.5mm +/-0.3mm
Mounting Type	Surface Mount, MLCC
Operating Temperature	-55°C ~ 125°C
Package / Case	1812 (4532 Metric)
Standard Package Quantity	2000
Temperature Coefficient	X7R
Termination	Tin
Thickness (Max)	2.30mm (0.091")
Tolerance	±10%
Voltage	500 V
Voltage - Rated DC	500 V
Width	3.2mm +/-0.3mm
