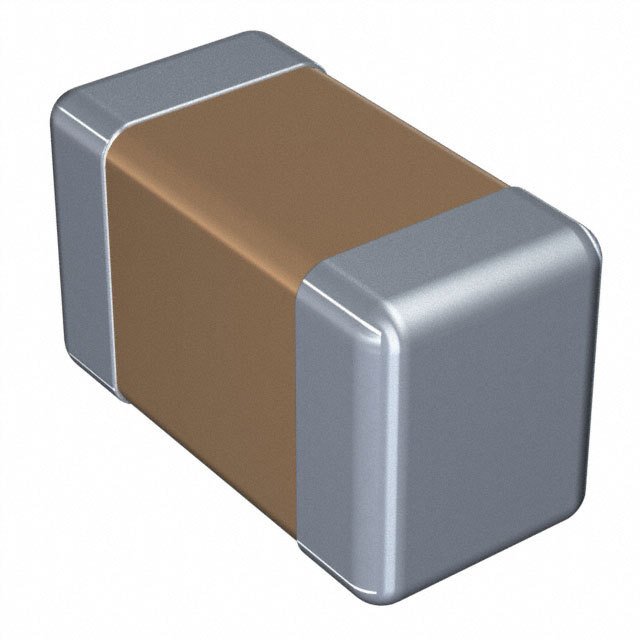

C1608C0G1H220J080AA This MLCC capacitor from TDK offers 22pF capacitance with ±5% tolerance, rated at 50V. It features C0G/NP0 temperature coefficient and is packaged in 0603 (1608 metric) surface mount.
Mfr Part #:

C1608C0G1H220J080AA

Available from 3 distributors
Mfr Name: TDK Corporation
TDK Corporation
This MLCC capacitor from TDK offers 22pF capacitance with ±5% tolerance, rated at 50V. It features C0G/NP0 temperature coefficient and is packaged in 0603 (1608 metric) surface mount.
✓ Total Stock: 758 pcs

C1608C0G1H220J080AA Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
472 pcs
On Request
472 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
284 pcs
$0.03 ℹ
Qty Price
0+ 0.03
284 pcs $0.03
QtyPrice
0+ 0.03
1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C1608C0G1H220J080AA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Features
Length
Mounting Type
Operating Temperature
Package / Case
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

C1608C0G1H220J080AA Description

Short technical summary and product information.

The TDK C1608C0G1H220J080AA is a multilayer ceramic chip capacitor (MLCC) designed for general purpose applications. It provides a capacitance of 22 pF with a tolerance of ±5% and a rated voltage of 50V.



This capacitor utilizes a C0G (NP0) dielectric, which offers a stable temperature coefficient across the operating range of -55°C to 125°C. It features low equivalent series inductance (ESL) for improved high-frequency performance.



The component is housed in a standard 0603 (1608 metric) surface-mount package with dimensions of 1.60mm x 0.80mm and a maximum thickness of 0.90mm. It is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).



Typical applications include general purpose filtering, coupling, and decoupling in various electronic devices. The capacitor is part of TDK's C series commercial grade MLCCs.

C1608C0G1H220J080AA Quick Information

Product Type: MLCC Capacitor
Series: C series
Canonical Name: TDK C1608C0G1H220J080AA Multilayer Ceramic Capacitor, 22pF, 50V, C0G, 0603
Subcategory: Multilayer Ceramic Capacitor

C1608C0G1H220J080AA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C1608C0G1H220J080AA Features

  • 22pF capacitance with ±5% tolerance.
  • Rated for 50V DC operation.
  • C0G/NP0 temperature coefficient.
  • Low ESL for high-frequency performance.
  • 0603 surface mount package.

C1608C0G1H220J080AA Applications

  • Ideal for general purpose decoupling circuits.
  • Used in high-frequency signal coupling applications.
  • Suitable for timing and filtering circuits.
  • Can be used in consumer electronics.
  • Applicable in industrial control systems.

C1608C0G1H220J080AA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of this capacitor?

22 pF.

What is the voltage rating?

50V.

What is the tolerance?

±5%.

What is the temperature coefficient?

C0G (NP0).

What is the package size?

0603 (1608 metric).

What is the operating temperature range?

-55°C to 125°C.

What features does this capacitor have?

Low ESL (equivalent series inductance).
