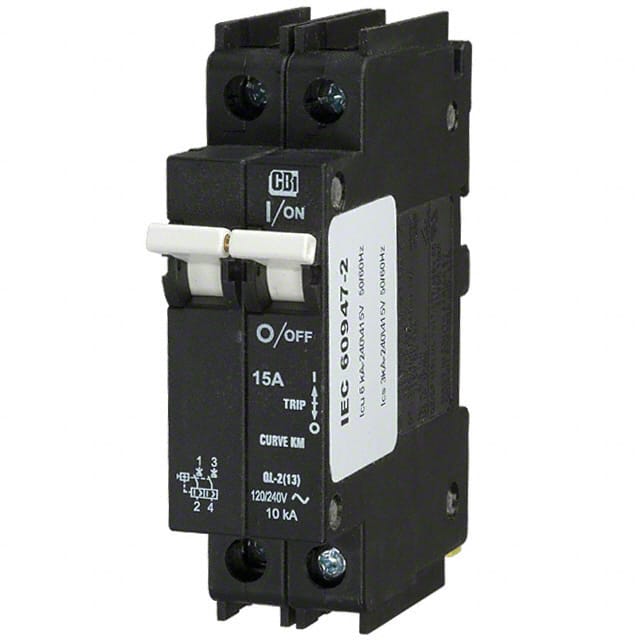

C15A2P-489 The American Electrical Inc. C15A2P-489 is a 2-pole, 15A circuit breaker featuring hydraulic-magnetic technology and DIN rail mounting. It operates at up to 240VAC.
Mfr Part #:

C15A2P-489

Mfr Name: American Electrical Inc.
American Electrical Inc.
The American Electrical Inc. C15A2P-489 is a 2-pole, 15A circuit breaker featuring hydraulic-magnetic technology and DIN rail mounting. It operates at up to 240VAC.
Stock on Request

C15A2P-489 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating (Amps)
Mounting Type
Number of Poles
Operating Temperature Range
SVHC Present
Voltage Rating
View Similar Products (0)

C15A2P-489 Description

Short technical summary and product information.

This American Electrical Inc. C15A2P-489 is a 2-pole circuit breaker designed for reliable circuit protection. It utilizes hydraulic-magnetic technology for consistent performance and features a 15A current rating with a maximum operating voltage of 240VAC.



The breaker is designed for DIN rail mounting, making it suitable for industrial control panels and electrical enclosures. Its compact design and lever actuator facilitate easy installation and operation.



With a high interrupting capacity of 10,000A, this circuit breaker provides robust protection against overcurrents. The operating temperature range is from -40°C to +60°C, ensuring functionality in various environmental conditions. It is approved by CE, UL489, and UR agencies.

C15A2P-489 Quick Information

Product Type: Circuit Breaker
Canonical Name: American Electrical Inc. C15A2P-489 Circuit Breaker
Subcategory: Thermal Magnetic Circuit Breaker

C15A2P-489 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C15A2P-489 Features

  • Two-pole magnetic-hydraulic circuit breaker.
  • Rated for 15 Amps and 240 Volts AC.
  • Features DIN rail mounting for convenience.
  • High interrupting capacity of 10,000A.
  • Operates in temperatures from -40°C to +60°C.

C15A2P-489 Applications

  • Ideal for industrial control panels.
  • Suitable for electrical enclosure systems.
  • Provides overcurrent protection.
  • Used in power distribution applications.

C15A2P-489 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the C15A2P-489 circuit breaker?

The current rating is 15A.

What is the maximum voltage for the C15A2P-489 circuit breaker?

The maximum voltage is 240V.

How many poles does the C15A2P-489 circuit breaker have?

It has 2 poles.

What type of mounting does the C15A2P-489 circuit breaker use?

It uses DIN rail mounting.

What is the operating temperature range for this circuit breaker?

The operating temperature range is -40°C to +60°C.

What is the interrupting capacity of the C15A2P-489?

The interrupting capacity is 10,000A.
