| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Sensitivity | |
| Voltage Rating |

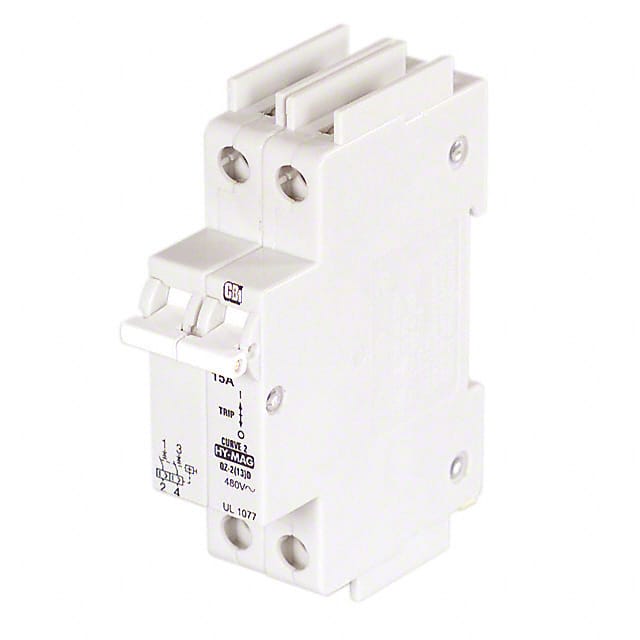

The American Electrical Inc. C15A2P is a 2-pole circuit breaker designed for DIN rail mounting. It features a 15A current rating and a maximum voltage rating of 480V. This breaker employs hydraulic-magnetic technology, providing a robust and reliable solution for circuit protection.
With a compact 13 mm width and 100% rating capability, this breaker is suitable for various industrial applications. The operating temperature range is from -40°C to +60°C, ensuring performance in diverse environmental conditions. It is UL 1077 and CE compliant.
This model is part of American Electrical Inc.'s line of DIN Rail Mounted Circuit Breakers, offering efficient and space-saving circuit protection solutions for electrical systems.
The C15A2P has a current rating of 15 A.
The C15A2P is rated for 480 VAC.
It is a magnetic hydraulic delay circuit breaker.
The interrupting capacity is 10,000 A.
It is mounted on a DIN Rail.
The operating temperature range is -40°C to +60°C.
The C15A2P has 2 poles.
