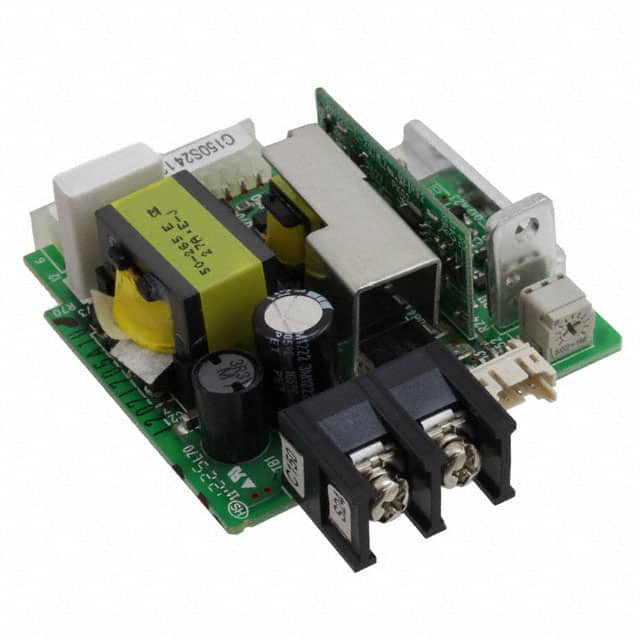

The Sanken C150S24 is a configurable DC power supply module designed for flexible output voltage configurations. It provides a nominal 24V output, adjustable within a range of 22.8V to 24.7V, and can deliver up to 156W of power with a maximum current of 6.5A.
This module supports remote sensing to compensate for voltage drops in output wiring and includes remote on/off functionality for enhanced control. It operates with a universal AC input voltage range of 85 to 264V.
Key features include user-adjustable output voltage, remote sensing capabilities, and alarm signals for PR (input voltage/fan status) and LV (output voltage/status). The C150S24 is part of Sanken's C-Series of low-noise switch mode power supplies, designed to save design and production time by allowing end-of-line selection of multiple output voltages using the same base unit.
The output voltage is 24V, adjustable within the range of 22.8V to 24.7V.
The C150S24 module has a maximum power output of 156W.
The C150S24 module has an output current rating of 6.5A.
Yes, the C150S24 module supports remote sensing for voltage compensation.
The C150S24 module accepts a universal AC input voltage range of 85 to 264V.
The PR signal is set high when the input voltage is below 0.8V (and 8mA) or when the internal fan is stopped.
The remote sensing voltage compensation range for the C150S24 module is 0.30V and below.
