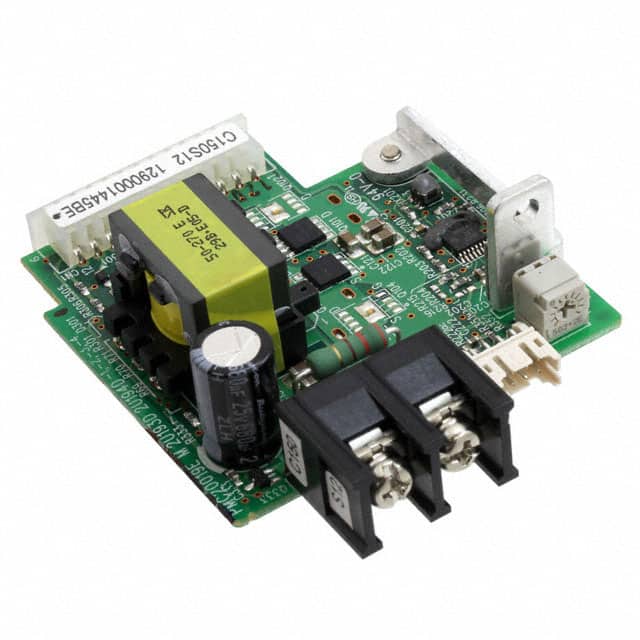

The Sanken C150S12 is a configurable DC output module designed for use within the C-Series power supply systems. It provides a nominal output voltage of 12V, adjustable within a range of 11.6V to 12.3V, and can deliver up to 13A of current, resulting in a maximum output power of 156W.
Key features include remote on/off control and remote sensing capabilities, which allow for voltage compensation due to output wiring losses. This module is user-adjustable, offering flexibility in configuring the power supply to meet specific application requirements. The C-series power supplies are known for their low-noise switch mode operation and user-configurable multiple outputs, saving design and production time.
This DC module is designed to be slot-mounted inside a base power supply unit, enabling various combinations of output voltages. The remote sensing function helps maintain stable output voltage at the load by compensating for voltage drops in the output wiring. It is important to use thick wires with sufficient current capacity when utilizing remote sensing to avoid potential damage due to overheating.
The Sanken C150S12 has a nominal output voltage of 12V, adjustable within the range of 11.6V to 12.3V.
The C150S12 module has a maximum output power of 156W.
The C150S12 module can deliver a maximum output current of 13A.
Yes, the C150S12 module features remote sensing functionality to compensate for voltage reduction due to output wiring.
The Sanken C150S12 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the C150S12 is 1 Unlimited.
