| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Entry Style | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Ingress Protection Rating | |
| Length | |
| Lock Location | |
| Operating Temperature | |
| Operating Temperature Range | |
| Style | |
| Width | |
| locking_location |

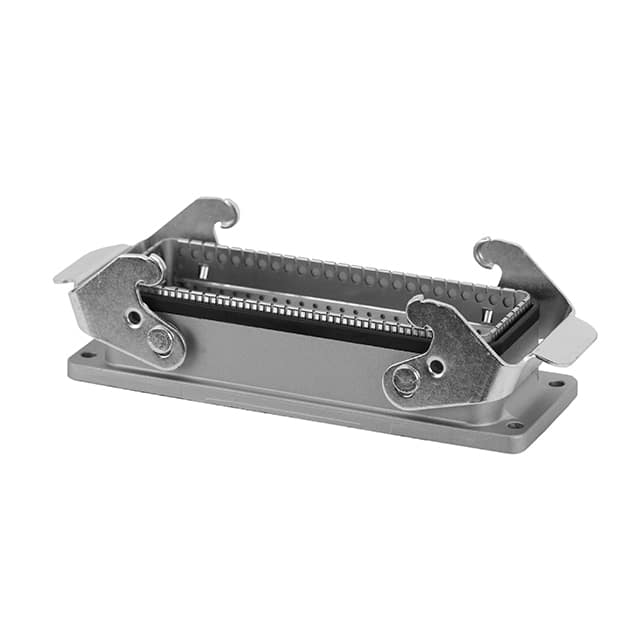

The C146 11F024 000 8 is a heavy duty connector base designed for panel mount applications. It is part of the Amphenol Tuchel Industrial heavy|mate series. The base features bottom entry cable routing and includes two locking clips on the base bottom for secure connection.
The housing is made of aluminum die cast with an EMC coating, providing electromagnetic compatibility. It is rated IP65 for dust tight and water resistance, making it suitable for harsh industrial environments. The operating temperature range is -40°C to 125°C.
The dimensions are 140.00mm length, 48.00mm width, and 33.30mm height. The base is gray in color and designed for panel mounting. The entry style is bottom entry, allowing cables to enter from below.
This base is typically used in heavy duty connector systems for industrial automation, machinery, and transportation applications. It is RoHS3 and REACH compliant.
IP65, dust tight and water resistant.
-40°C to 125°C.
Aluminum, die cast with EMC coating.
140.00mm length x 48.00mm width x 33.30mm height.
RoHS3 Compliant (confidence low, not verified).
C14611F0240008-ND.
