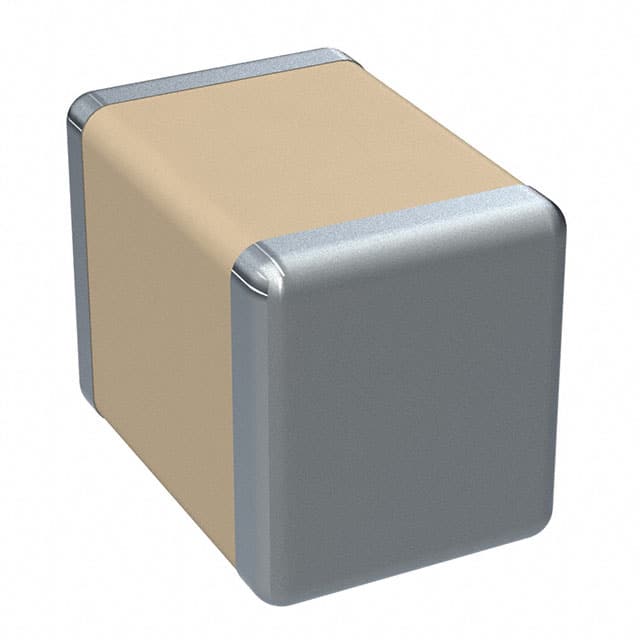

C1210C104J5GACAUTO 0.1 µF, 50 VDC, ±5% tolerance C0G ceramic capacitor. Automotive grade, AEC-Q200 qualified, in 1210 surface mount package.
Mfr Part #:

C1210C104J5GACAUTO

Available from 1 distributors
Mfr Name: Yageo
Yageo
0.1 µF, 50 VDC, ±5% tolerance C0G ceramic capacitor. Automotive grade, AEC-Q200 qualified, in 1210 surface mount package.
✓ Total Stock: 11,000 pcs

C1210C104J5GACAUTO Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
11,000 pcs
On Request
11000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C1210C104J5GACAUTO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)
Case Code (EIA / mm)
Dielectric Withstanding Voltage
Dissipation Factor
Features
Insulation Resistance
Length
Mounting Type
Operating Temperature
Package / Case
Packaging Style
Ratings
Standard Package Quantity
Temperature Coefficient
Termination
Thickness
Thickness (Max)
Tolerance
Typical Component Weight
Voltage
Voltage DC
Width
View Similar Products (0)

C1210C104J5GACAUTO Description

Short technical summary and product information.

The KEMET C1210C104J5GACAUTO is an automotive-grade, ultra-stable, low-loss multilayer ceramic capacitor (MLCC) in the 1210 (3225 metric) case size. It offers a capacitance of 0.1 µF with a tight ±5% tolerance and a voltage rating of 50 VDC. The C0G (NP0) dielectric provides a temperature coefficient of 30 ppm/°C, ensuring minimal capacitance change over the operating temperature range of -55°C to +125°C.



This component features a low ESL design suitable for high-frequency applications. With a dissipation factor of only 0.1% and insulation resistance of 10 GOhms minimum, it delivers excellent electrical performance. The aging rate is 0% loss per decade hour, indicating long-term stability. The capacitor is AEC-Q200 qualified, making it suitable for automotive electronics where reliability is critical.



The part is supplied in tape and reel packaging (180mm plastic tape) with a standard quantity of 2500 pieces. Terminations are tin, and it is RoHS compliant (RoHS3) with MSL 1 (unlimited floor life). The component weighs 40 mg typical.

C1210C104J5GACAUTO Quick Information

Product Type: MLCC Capacitor
Series: SMD Auto C0G
Canonical Name: KEMET C1210C104J5GACAUTO SMD Auto C0G MLCC Capacitor
Subcategory: SMD Ceramic Capacitor

C1210C104J5GACAUTO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C1210C104J5GACAUTO Features

  • Ultra-stable C0G dielectric with 30 ppm/°C TCC.
  • Rated for 50 VDC operation with 125 VDC dielectric withstand.
  • AEC-Q200 qualified for automotive reliability.
  • Low ESL design for high-frequency applications.
  • Surface mount 1210 package with tin termination.

C1210C104J5GACAUTO Applications

  • Ideal for automotive engine control units.
  • Used in safety-critical and infotainment systems.
  • Suitable for high-frequency filtering circuits.
  • Applicable in harsh environment electronics.

C1210C104J5GACAUTO FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the C1210C104J5GACAUTO?

0.1 µF measured at 1 kHz, 1.0 Vrms.

What is the voltage rating?

50 VDC, with a dielectric withstanding voltage of 125 VDC.

What is the temperature coefficient?

C0G (NP0) with a maximum change of 30 ppm/°C.

What is the tolerance?

±5%.

What case size is this capacitor?

1210 (3225 metric).

What is the dissipation factor?

0.1% maximum at 1 kHz, 1.0 Vrms.

What is the insulation resistance?

10 GOhms minimum.
