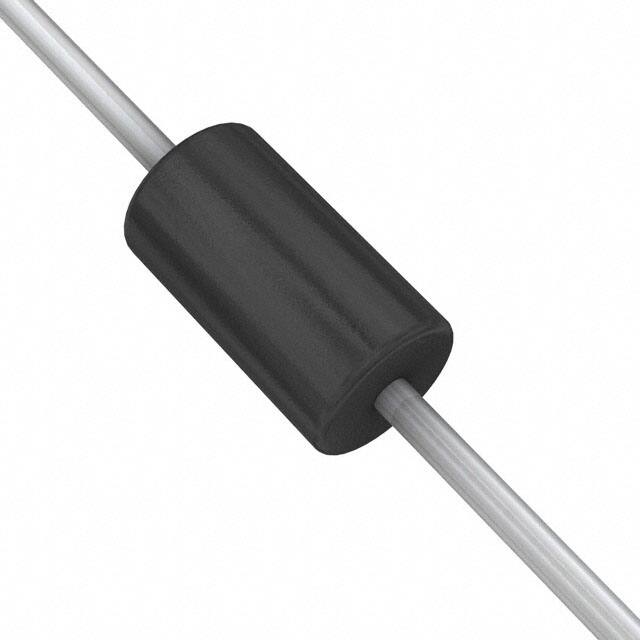

C114C391J1G5CA KEMET C114C391J1G5CA is a 390 pF, ±5% tolerance, 100 VDC rated C0G (NP0) ceramic capacitor in an axial leaded package.
Mfr Part #:

C114C391J1G5CA

Available from 1 distributors
Mfr Name: Yageo
Yageo
KEMET C114C391J1G5CA is a 390 pF, ±5% tolerance, 100 VDC rated C0G (NP0) ceramic capacitor in an axial leaded package.
✓ Total Stock: 335 pcs
$ Price Range: $0.33 - $0.88

C114C391J1G5CA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
335 pcs
On Request
335 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

C114C391J1G5CA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Withstanding Voltage
Dissipation Factor
Features
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
Prop 65
Temperature Coefficient
Termination
Tolerance
Voltage
Voltage Rating
View Similar Products (0)

C114C391J1G5CA Description

Short technical summary and product information.

The KEMET C114C391J1G5CA is a ceramic capacitor with a capacitance of 390 pF and a tolerance of ±5%. It is rated for a DC voltage of 100 V and features a C0G (NP0) temperature coefficient, ensuring stable capacitance over a wide temperature range from -55°C to 125°C. The dissipation factor is limited to 0.1% maximum at 1 MHz and 25°C, and the insulation resistance is 2.564 GΩ.



This capacitor is designed for through hole mounting with an axial leaded package. The body measures 2.29 mm in diameter and 4.06 mm in length, with a minimum lead length of 38.1 mm and a lead diameter of 0.51 mm. The termination is lead (SnPb), which means it is not RoHS compliant. The part is supplied in bulk bag packaging with a standard quantity of 200 pieces.



With its low ESL feature, the C114C391J1G5CA is suited for general purpose applications including coupling, decoupling, and filtering in circuits where stable capacitance and low losses are required. The C0G dielectric offers excellent temperature stability and low aging effects.

C114C391J1G5CA Quick Information

Product Type: Ceramic Capacitor
Series: LDD Comm C0G
Canonical Name: KEMET C114C391J1G5CA Ceramic Capacitor, 390 pF, ±5%, 100 VDC, C0G, Axial
Subcategory: Axial Leaded Ceramic Capacitor

C114C391J1G5CA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C114C391J1G5CA Estimated Pricing

Qty Low High
1+ $0.88 $0.88
200+ $0.34 $0.34
500+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

C114C391J1G5CA Features

  • 390 pF capacitance with ±5% tolerance.
  • Rated for 100 VDC operation.
  • C0G (NP0) temperature coefficient for stability.
  • Axial leaded through hole package.
  • Low ESL design for high frequency performance.

C114C391J1G5CA Applications

  • General purpose coupling and decoupling.
  • Timing and filtering circuits.
  • High frequency noise bypass.

C114C391J1G5CA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the C114C391J1G5CA?

390 pF.

What is the voltage rating?

100 VDC.

What is the temperature coefficient?

C0G (NP0), stable from -55°C to 125°C.

What is the tolerance?

±5%.

What is the package style?

Axial leaded through hole.

What is the dissipation factor?

0.1% maximum at 1 MHz, 25°C.

Is this capacitor RoHS compliant?

No, it has SnPb termination (RoHS No per datasheet).
