| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Operation | |
| Sensitivity | |
| Voltage Rating | |
| Weight | |
| Width |

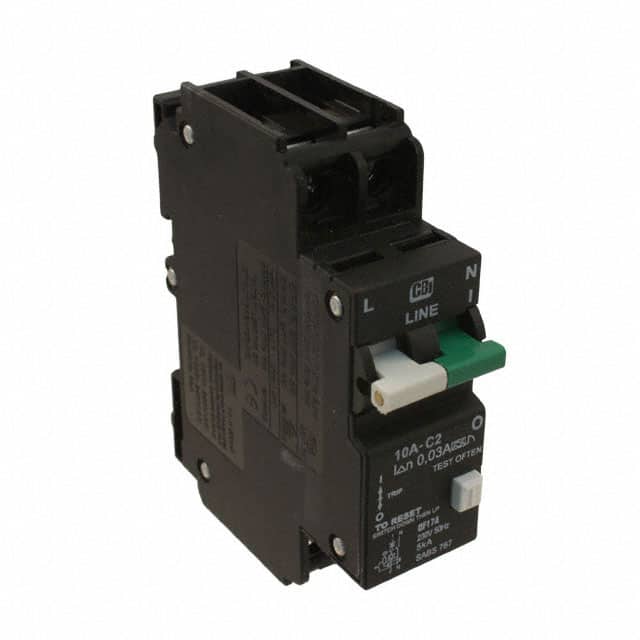

This American Electrical Inc. C10A2P-GFI is a Ground Fault Interrupter Circuit Breaker with a 10A current rating and a 240V voltage rating. It is designed for DIN rail mounting and features a 1-pole configuration.
The breaker utilizes a magnetic/hydraulic operation, ensuring performance unaffected by ambient temperature. It has an interrupting rating of 5 kA and a trip curve of 2. The operating temperature range is from -40°C to +60°C.
Compliance is certified by CE and UL (UL1053, UL1077). The sensitivity is rated at 30mA for CE and 22mA for UL. This breaker is suitable for applications requiring protection against ground faults, helping to prevent electric shocks and reduce fire risks.
Key specifications include a width of 26mm and a weight of 0.57 lbs. The part number is C10A2P-GFI, with a DK Part Number of 288-1397-ND.
The current rating is 10A.
The voltage rating is 240V.
It has 1 pole.
It is a Ground Fault Interrupter Circuit Breaker.
It is designed for DIN rail mounting.
It is approved by CE, UL1053, and UL1077.
The operating temperature range is -40°C to +60°C.
