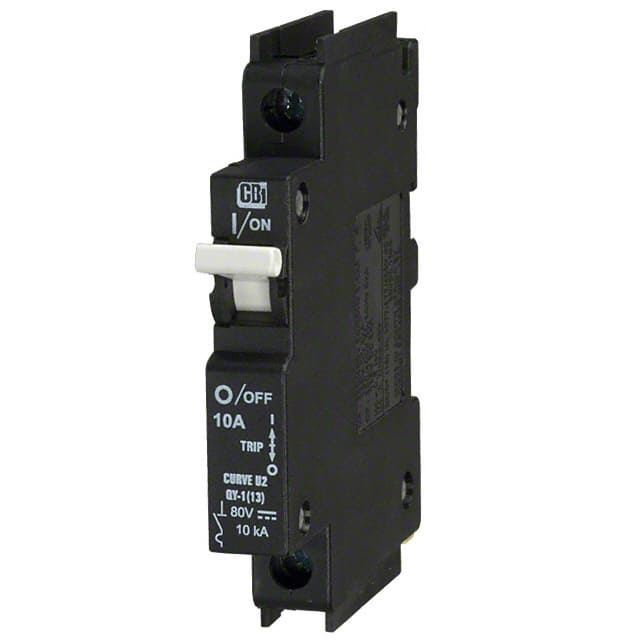

C10A1P-80VDC The American Electrical Inc. C10A1P-80VDC is a 1-pole DC circuit breaker with a 10A current rating and 80VDC voltage rating. It features a magnetic-hydraulic delay mechanism and DIN rail mounting.
Mfr Part #:

C10A1P-80VDC

Mfr Name: American Electrical Inc.
American Electrical Inc.
The American Electrical Inc. C10A1P-80VDC is a 1-pole DC circuit breaker with a 10A current rating and 80VDC voltage rating. It features a magnetic-hydraulic delay mechanism and DIN rail mounting.
Stock on Request

C10A1P-80VDC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Length
Mounting Type
Number of Poles
Voltage Rating
Width
View Similar Products (0)

C10A1P-80VDC Description

Short technical summary and product information.

This American Electrical Inc. C10A1P-80VDC is a single-pole DC circuit breaker designed for reliable circuit protection. It offers a current rating of 10 Amps and a voltage rating of 80 VDC.



The breaker utilizes a magnetic-hydraulic delay mechanism, providing specific trip characteristics for DC applications. It is designed for DIN rail mounting, facilitating easy integration into control panels and electrical enclosures.



Manufactured to rigorous standards, this circuit breaker is suitable for various industrial and commercial DC power systems. Its compact design and robust construction ensure dependable performance in demanding environments.

C10A1P-80VDC Quick Information

Product Type: Circuit Breaker
Canonical Name: American Electrical Inc. C10A1P-80VDC Magnetic Hydraulic Delay Circuit Breaker
Subcategory: DC Circuit Breakers

C10A1P-80VDC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

C10A1P-80VDC Features

  • 10A current rating for DC circuits.
  • 80VDC voltage rating for DC applications.
  • Magnetic-hydraulic delay for reliable tripping.
  • DIN rail mounting for easy installation.
  • Single-pole design for basic circuit protection.

C10A1P-80VDC Applications

  • Ideal for DC power distribution.
  • Suitable for industrial control panels.
  • Used in renewable energy systems.
  • Applicable in telecommunication power.
  • Protects sensitive DC equipment.

C10A1P-80VDC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the C10A1P-80VDC circuit breaker?

The current rating is 10A.

What is the voltage rating for the C10A1P-80VDC circuit breaker?

The voltage rating is 80V.

How is the C10A1P-80VDC circuit breaker mounted?

It is designed for DIN rail mounting.

What type of breaker mechanism does the C10A1P-80VDC use?

It uses a Magnetic (Hydraulic Delay) mechanism.

How many poles does the C10A1P-80VDC circuit breaker have?

It has 1 pole.

What are the dimensions of the C10A1P-80VDC circuit breaker?

The width is 13 mm and the length is 97.2 mm.
