| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| For Use With | |
| Lens Material Temperature Resistance | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Material | |
| Mounting Type | |
| Number of LEDs | |
| Optical Efficiency | |
| Optical Pattern | |
| Package Quantity | |
| Type | |
| Viewing Angle |

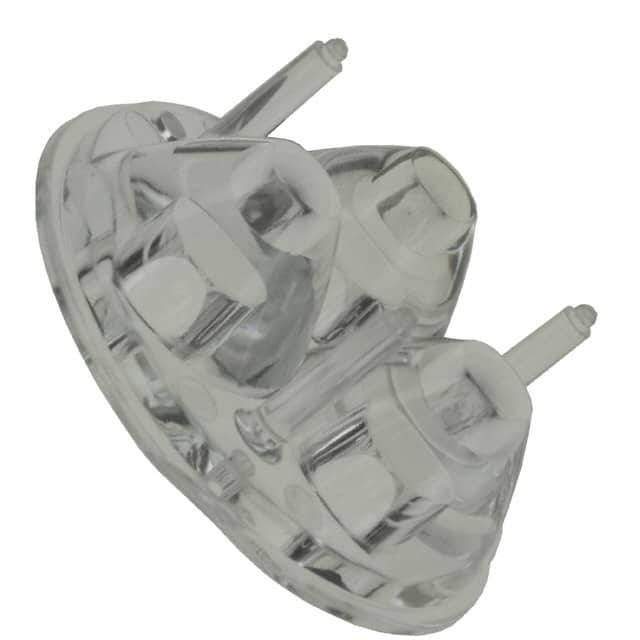

The Ledil TITANUM-3-S is a high-performance lens designed for use with Osram Dragon series white and monochromatic LEDs. Constructed from optical grade PMMA, it offers excellent UV and temperature resistance, rated up to 105°C.
This lens features a 50mm diameter and a spot optical pattern, providing a narrow beam with a typical viewing angle of ±7°. It boasts high optical efficiency, exceeding 85%, ensuring maximum light output. The TITANUM-3-S is designed for easy integration into luminaires, fastening directly to a heat sink with adhesive tape, eliminating the need for a separate lens holder.
Mechanical CAD models are available upon request. The lens is packaged in carton boxes containing 384 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical viewing angle for the TITANUM-3-S lens is ±7°.
The lens is made from optical grade PMMA.
The lens has a diameter of 50 mm.
The lens is mounted using an adhesive tape.
The optical efficiency is greater than 85%.
The PMMA lens material has a temperature resistance of 105°C.
